Regulating Valve Common Issues FAQ: Cause Analysis and Solutions (2026 Practical Edition)

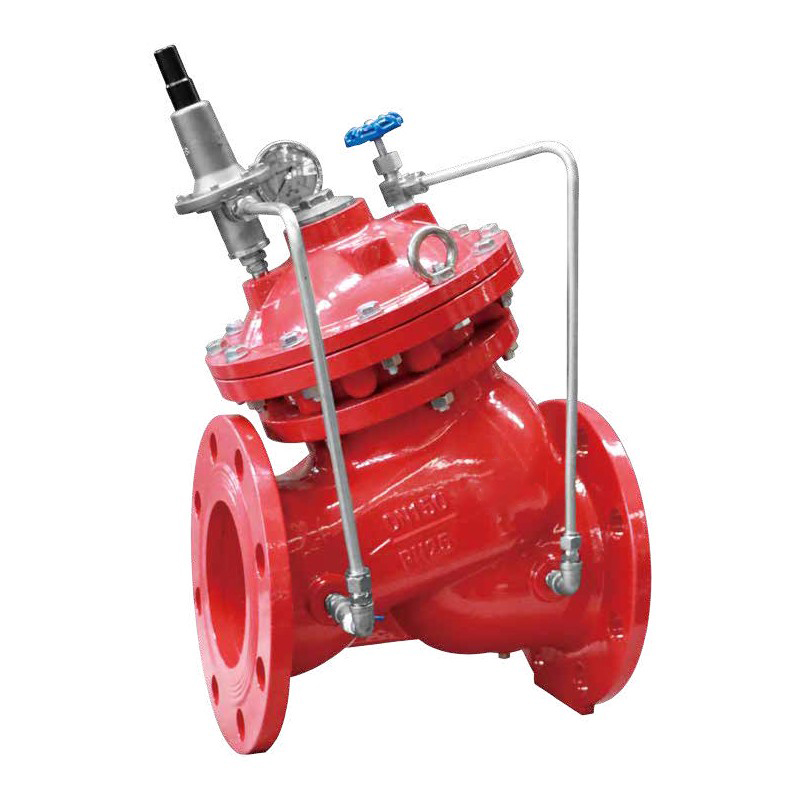

A regulating valve is a device used in industrial process control systems to regulate parameters such as flow, pressure, temperature, or liquid level. It controls the passage of media by receiving a control signal and changing the opening of the valve core or disc. In industries such as chemical, petroleum, power, and pharmaceuticals, regulating valves come into direct contact with the medium, often under complex working conditions. If problems arise, they can affect system stability and even lead to production fluctuations or safety hazards.

Based on industry technical data and practical usage, the following content organizes several common issues encountered during the operation of regulating valves. For each issue, possible causes are explained, and corresponding solutions are listed. The content uses plain language for easy understanding by non-specialists while retaining necessary engineering details. Issues are arranged roughly in order of frequency of occurrence for easy reference.

1. Why are double-seated regulating valves prone to oscillation when operating at small openings?

Double-seated regulating valves have two sealing surfaces. The fluid action direction on the upper plug differs from that on the lower plug. Typically, the force direction on the upper plug aligns with the opening direction, while the opposite is true for the lower plug. At small openings, the force balance near the lower plug is easily disrupted, causing the plug to wobble, similar to a thin rod becoming unstable in the wind, thus generating oscillation.

Solutions:

• Under small opening conditions (e.g., opening below 30%), consider switching to a single-seated or cage-type structure.

• Increase the actuator stiffness, or switch to a rotary motion valve (which typically has a larger stem diameter and relatively higher stability).

• During actual operation, observe the vibration. If it persists, check if the pipe supports are secure.

2. Why are double-sealed regulating valves not suitable for use as shut-off valves?

Although the double-seal structure has certain characteristics regarding force balance, it is difficult for both sealing surfaces to achieve tight contact simultaneously. There will always be some clearance, resulting in relatively large leakage that does not meet strict shut-off requirements.

Solutions:

• For applications requiring shut-off functionality, a single-seated structure can be selected, paying attention to the material pairing of the sealing surfaces.

• For systems with clear leakage requirements, perform regular seal performance checks (e.g., using a bubble test or pressure test to observe conditions).

• Soft seal materials initially provide good seating, but long-term wear should be monitored; hard seals differ in their resistance to erosion.

3. Why is the anti-clogging performance of linear motion regulating valves relatively weak, while rotary motion regulating valves perform differently in this regard?

The plug of a linear motion regulating valve moves up and down linearly. The medium enters and exits horizontally, requiring the flow path inside the valve body to make multiple turns, forming an S-like shape. This structure creates many dead zones where impurities and sediment can easily accumulate, eventually causing blockage.

The throttling components of rotary motion regulating valves (such as ball valve and butterfly valve types) perform a rotating motion. The medium flow direction is basically consistent with the throttling direction, resulting in a relatively smooth flow path where impurities do not easily get trapped.

Solutions:

• For media containing particles, fibers, or those prone to crystallization, the simple flow path of rotary motion valves allows the medium to carry away impurities.

• When using linear motion valves, install a strainer at the inlet or arrange regular purge maintenance.

• In simple terms, a linear motion path is like a winding channel prone to accumulation, while a rotary motion path is like a straighter channel allowing smoother passage.

4. Why is the stem of linear motion regulating valves typically designed to be relatively thin?

A linear motion stem needs to slide up and down. After the packing is tightened, significant sliding friction is generated. If the stem is too thick, frictional resistance increases, causing hysteresis (deviation between actual position and command position). To control friction, the stem diameter is often designed smaller, paired with packing that has a low friction coefficient. However, a thin stem is more prone to bending under stress, and packing wear may also accelerate.

Solutions:

• For rotary motion valves, the stem diameter is typically larger. Packing friction is primarily rotational friction, resulting in relatively smaller hysteresis and potentially longer packing life.

• During routine maintenance, regularly check the tightness of the packing gland to avoid excessive friction from over-tightening or external leakage from under-tightening.

5. Why does the differential pressure withstand capability of rotary motion regulating valves differ when shut off?

In rotary motion valves, the medium's force on the ball or disc is primarily converted into torque around the rotating shaft. This torque value is relatively small, therefore, under the same conditions, the range of differential pressure the valve can withstand is expanded.

Solutions:

• When the differential pressure across the system is large, consult the allowable differential pressure data in the valve datasheet and match it according to actual working conditions.

• Ensure the torque provided by the actuator meets requirements during installation, avoiding operation beyond specified limits.

6. Why is the service life sometimes shorter when using lined butterfly valves or lined diaphragm valves in demineralized water service?

Demineralized water often contains trace amounts of acidic or alkaline components. These components can corrode the rubber material, causing the lining to swell, age, or lose strength. The diaphragm of a diaphragm valve is also prone to fatigue rupture during repeated operation.

Solutions:

• Select valve structures and sealing materials suitable for water treatment conditions based on the specific pH value and ion content of the medium.

• Regularly observe the valve's operation and appearance, and arrange for replacement in advance if necessary.

7. Why haven't cage-type valves completely replaced single-seated and double-seated valves?

Cage-type valves have their own structural characteristics regarding throttling style and stability maintenance. However, their weight, flow capacity, anti-clogging performance, and leakage characteristics each have applicable ranges compared to single-seated and double-seated valves. The three structures still have their respective usage scenarios under different working conditions.

Solutions:

• Consider single-seated structures for small-flow, high-precision control applications. Refer to double-seated structures for larger differential pressure applications. Based on the characteristics of cage valves, they can be chosen for applications requiring frequent maintenance or high anti-clogging demands.

• Combine multiple parameters such as flow rate, differential pressure, and medium properties during selection.

8. What should be noted when selecting sealing surfaces for shut-off type regulating valves?

Shut-off function requires controlling leakage within a specified range after the valve closes. Soft seal materials provide initially effective sealing, but their wear resistance varies over long-term use. Hard sealing surfaces (using wear-resistant alloys, etc.) perform differently under erosive conditions, balancing leakage control with operational reliability.

Solutions:

• Select the appropriate seal type based on the shut-off class requirement (e.g., bubble test standards).

• Perform regular leak testing. If sealing surface damage is found, lap it in or replace it promptly.

9. What aspects need attention during the regulating valve selection process?

Regulating valve calculation mainly involves flow coefficient (Cv value), pressure drop, and other basic parameters. However, practical applications also require considering many factors: medium corrosivity, viscosity, presence of solids, installation space, actuator type, noise control, etc. Improper parameter matching can lead to subsequent operational problems.

Solutions:

• Provide complete process data to the manufacturer, including medium name, flow range, inlet/outlet pressure, temperature, viscosity, solid content, etc.

• Refer to relevant national or industry standards and combine with piping layout and control accuracy requirements for confirmation.

• Ensure the arrow direction on the valve body aligns with the medium flow direction before installation.

10. How is the piston-type structure used in pneumatic regulating valve actuators?

Piston-type actuators use air supply pressure to generate thrust. They have a compact structure and are applicable in situations requiring large diameters or high thrust. Compared to diaphragm types, their sealing form and output characteristics differ.

Solutions:

• Select the matching actuator type based on valve size and differential pressure magnitude.

• When using a positioner with the actuator, pay attention to the cleanliness and pressure stability of the air supply.

11. What are the manifestations and solutions when cavitation and flashing occur in regulating valves?

As liquid flows through the valve throttling area, if the local pressure drops below the vapor pressure, bubbles form. These bubbles collapse in the pressure recovery region, creating impacts (cavitation) that easily damage the plug and seat. Flashing occurs when the liquid partially turns to vapor, creating a two-phase flow that exacerbates vibration and erosion.

Solutions:

• Use multi-stage pressure reducing valve plugs or cage-type trims to allow pressure to drop gradually, avoiding excessive single-stage pressure drops.

• Increase the valve outlet pressure or adjust the installation position to alter working conditions.

• Monitor noise and vibration levels during operation. If they exceed the normal range, promptly inspect the internal condition.

12. What are the common locations and causes of leakage in regulating valves?

Leakage is divided into external leakage (at the packing) and internal leakage (between the plug and seat). External leakage is often related to aging packing, improper tightening, or a damaged stem surface. Internal leakage is often related to seal wear, debris obstruction, or insufficient actuator stroke.

Solutions:

• For external leakage, appropriately adjust the packing gland, or replace the packing (choose graphite or PTFE materials based on temperature).

• For internal leakage, inspect and lap the sealing surfaces, or replace the plug and seat assembly.

• Arrange for a comprehensive overhaul once a year. For critical valves, add online monitoring methods.

13. What are the causes of excessive vibration and noise in regulating valves?

Vibration can stem from unstable fluid flow, insufficient actuator stiffness, pipe resonance, or medium erosion. Noise is generated by high-velocity fluid impact, cavitation, or mechanical resonance.

Solutions:

• Check if pipe supports are secure. Add flow restrictors or multi-port trims to disperse energy if necessary.

• Optimize the valve opening range to avoid long-term operation at very small or very large openings.

• If noise exceeds certain decibel levels, take noise mitigation measures to protect operator hearing.

14. What are the causes and solutions for slow or no action of a regulating valve?

Common causes include: insufficient air supply pressure, positioner malfunction, stem binding, damaged actuator diaphragm or seals, or the plug being stuck by debris.

Solutions:

• Check the air supply pressure (typically not below 0.4 MPa) and ensure the air is dry and clean.

• Clean the filter-regulator and piping. Calibrate the positioner.

• Regularly lubricate the stem. Take anti-freeze measures in winter.

• If the plug is stuck, try manual operation or disassemble and inspect/clean.

15. What precautions are needed for the installation and routine maintenance of regulating valves?

Improper installation increases the probability of future failures. Install the valve body according to the flow direction arrow. Position the actuator generally above for maintenance access. Ensure sufficient straight pipe runs upstream and downstream (approximately 10x pipe diameter upstream, 5x downstream) to avoid disturbances from directly connecting to elbows or pump outlets.

Maintenance aspects:

• Monthly: Check the tightness of packing and connection bolts.

• Quarterly: Calibrate the positioner and actuator once.

• When out of service for extended periods, position the valve fully open or fully closed to reduce stress on sealing surfaces.

• After connecting to the control system, observe valve action patterns through trend data to detect anomalies early.

16. How to choose between electric, pneumatic, and hydraulic regulating valves based on their characteristics?

Pneumatic regulating valves offer relatively fast response, suitable for applications requiring quick action. Electric regulating valves do not need an air source, suitable for areas without air supply or remote control scenarios. Hydraulic regulating valves provide high thrust, suitable for very large diameters or high-load situations.

Solutions:

• Match the selection based on on-site utility conditions, response time requirements, and maintenance convenience.

• Regardless of the drive type, ensure stable power or air supply and regularly inspect drive components.

Conclusion

The operating condition of a regulating valve is closely related to selection, installation, and maintenance. It is recommended to record operational data based on specific process conditions and establish a regular inspection system. When encountering complex working conditions, provide detailed parameters (such as medium composition, flow range, differential pressure, etc.) for further analysis.
