Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | Filter | Stainless steel 304 | Stainless steel 316 |
3 | O molding ring | NBR | EPDM |
4 | Valve cover | Ductile cast iron QT450-10 | |
5 | Six-sided bolt | Zinc-coated steel | Stainless steel 304/316 |
6 | flat gasket | Zinc-coated steel | Stainless steel 304/316 |
Note: If you need to select a non-standard configuration, specify it in the order or contract.

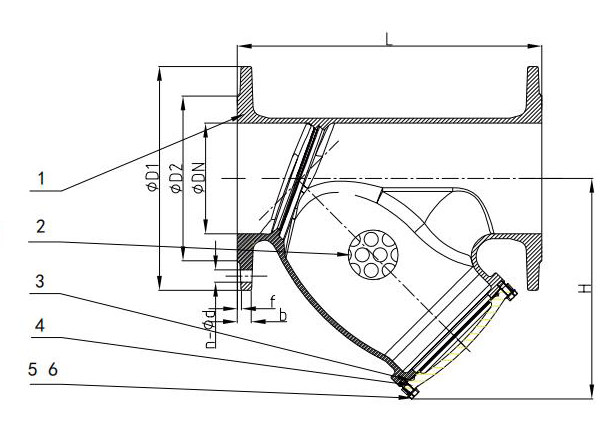

Structure size
Nominal diameter DN | nominal pressure | size （mm） | |||||||||
Inch | mm | PN | L | D | D1 | D2 | b | n | d | f | H |
2" | 50 | 10/16 | 195 | 165 | 125 | 99 | 19 | 4 | 19 | 3 | 118 |
2.5" | 65 | 10/16 | 210 | 185 | 145 | 118 | 19 | 4 | 19 | 3 | 136 |
3" | 80 | 10/16 | 255 | 200 | 160 | 132 | 19 | 8 | 19 | 3 | 161 |
4" | 100 | 10/16 | 285 | 220 | 180 | 156 | 19 | 8 | 19 | 3 | 191 |
5" | 125 | 10/16 | 340 | 250 | 210 | 184 | 19 | 8 | 19 | 3 | 242 |
6" | 150 | 10/16 | 390 | 285 | 240 | 211 | 19 | 8 | 23 | 3 | 274 |
8" | 200 | 10 | 490 | 340 | 295 | 266 | 20 | 8 | 23 | 3 | 356 |
16 | 12 | 23 | 3 | ||||||||
10" | 250 | 10 | 540 | 405 | 350 | 319 | 22 | 12 | 23 | 3 | 385 |
16 | 355 | 12 | 28 | 3 | |||||||
12" | 300 | 10 | 650 | 460 | 400 | 370 | 24.5 | 12 | 23 | 4 | 486 |
16 | 410 | 12 | 28 | ||||||||
