Parameter Standard
Connection standard: GB 5135.11
Working pressure: PN16
Inspection standard: GB/T 13927
Operating temperature: 0°C to 80°C
Surface treatment: Epoxy resin powder coating, compliant with ANSI/AWWA C550 standard.
Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | Filter | Stainless steel 304 | Stainless steel 316 |
3 | pad | Zinc-coated steel | Stainless steel 304/316 |
4 | bolt | Zinc-coated steel | Stainless steel 304/316 |
5 | Valve cover | Ductile cast iron QT450-10 | |
6 | O molding ring | acrylonitrile-butadiene rubber NBR | Ethylene Propylene Diene Monomer (EPDM) rubber |
Note: If you need to select a non-standard configuration, specify it in the order or contract.

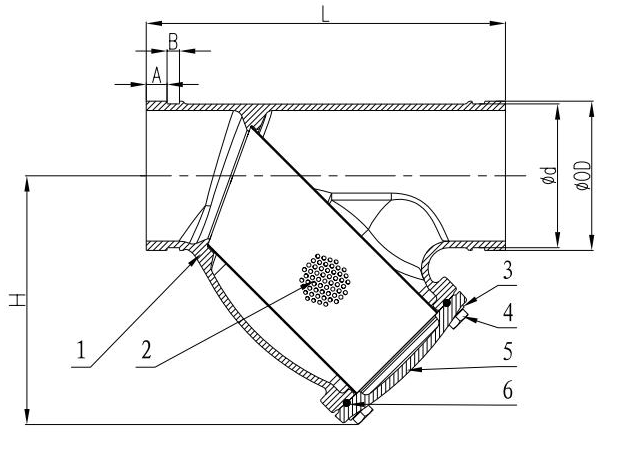

Structure size
Nominal diameter DN | size （mm） | ||||||
Inch | mm | H | L | OD | d | A | B |
2" | 50 | 118 | 185.0 | 60.3 | 57.15 | 15.88 | 7.93 |
2.5" | 65 | 136 | 210.0 | 76.1 | 72.26 | 15.88 | 7.93 |
3" | 80 | 161 | 245.0 | 88.9 | 84.94 | 15.88 | 7.93 |
4" | 100 | 191 | 275.0 | 114.3 | 110.08 | 15.88 | 9.53 |
5" | 125 | 242 | 340.0 | 139.7 | 135.48 | 15.88 | 9.53 |
6” | 150 | 274 | 385.0 | 165.1 | 160.90 | 15.88 | 9.53 |
8" | 200 | 357 | 490.0 | 219.1 | 214.40 | 19.05 | 11.10 |
