Parameter Standard
Inspection standard: GB/T 13927-2008
Working pressure: PN10/16/25
Connection standard: GB5135.11
Operating temperature: 0°C to 80°C
Casting material standards: GB/T 9441, BS EN 1563-2008
Surface treatment: Epoxy resin powder spraying
Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | Filter | Stainless steel 304 | Stainless steel 316 |
3 | Rigid pipe clamp | Ductile cast iron QT450-10 | |
4 | vacuum tube cap | Ductile cast iron QT450-10 | |
5 | plug | Hot-dip galvanized malleable cast iron | Bronze ASTM B584 |
Note: If you need to select a non-standard configuration, specify it in the order or contract.

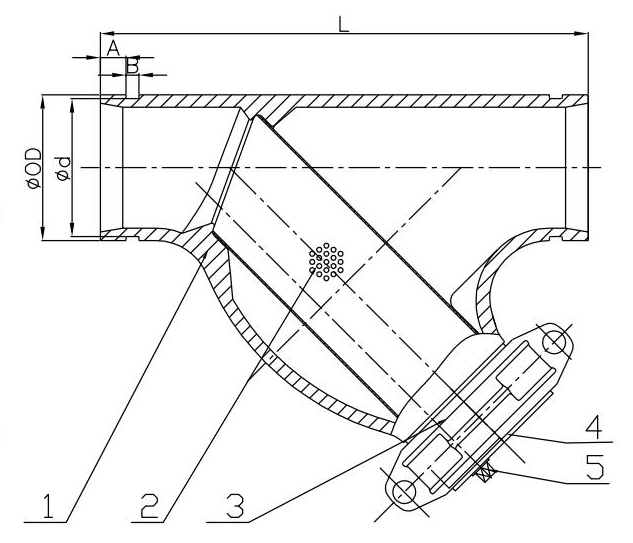

Structure size
Nominal diameter DN | size （mm） | |||||
Inch | mm | L | OD | d | A | B |
2" | 50 | 247.5 | 60.3 | 57.15 | 15.88 | 7.92 |
2.5” | 65 | 273 | 73 | 69.09 | 15.88 | 7.92 |
2.5" | 65 | 273.0 | 76.1 | 72.26 | 15.88 | 7.92 |
3" | 80 | 298.5 | 88.9 | 84.94 | 15.88 | 7.92 |
4" | 100 | 362.0 | 114.3 | 110.08 | 15.88 | 9.52 |
5" | 125 | 419.0 | 139.7 | 135.48 | 15.88 | 9.52 |
5" | 125 | 419 | 141.3 | 137.03 | 15.88 | 9.52 |
6" | 150 | 470.0 | 165.1 | 160.90 | 15.88 | 9.52 |
6” | 150 | 470.0 | 168.3 | 163.96 | 15.88 | 9.52 |
8" | 200 | 609.5 | 219.1 | 214.40 | 19.05 | 11.13 |
10" | 250 | 686.0 | 273.0 | 268.28 | 19.05 | 12.70 |
12" | 300 | 762.0 | 323.9 | 318.29 | 19.05 | 12.70 |
Mike Valve's One-Room Building Series
FOR BUILDING SERIES、
Standard Network
Nominal diameter DN | mesh number | Cylinder diameter | Free Circulation Rate | |
Inch | mm | mm | % | |
2"~2.5" | 50~65 | 25 | 4 | 48 |
3"~4" | 80~100 | 19 | 5 | 59 |
5" | 125 | 14 | 6 | 63 |
6"~12" | 150~300 | 13 | 6.3 | 64 |
