Product Overview
The threaded air vent valve is used for venting pipelines in independent heating systems, central heating systems, heating boilers, central air conditioning systems, floor heating systems, and solar heating systems. Since water usually contains dissolved air, and the solubility of air decreases as temperature rises, air gradually separates from the water during circulation and accumulates to form large air bubbles or even air columns, which hinders heat transfer in the heating system.
Product Features
Made of stainless steel, corrosion-resistant
Compact size, simple structure, and easy maintenance
Technical Parameters
Item | Specification |
|---|---|
Model | ZP88-Z |
Design & Manufacturing Standard | GB/T 8464-2008 |
Nominal Pressure | 1.0 / 1.6 MPa |
Seal Test Pressure | 0.6–0.8 MPa |
Shell Test Pressure | 1.5 / 2.4 MPa |
Applicable Medium | Water, Gas |
Medium Temperature | 0℃ ~ 80℃ |
Connection Type | Threaded Connection |
Connection Standard | GB/T 7307 |

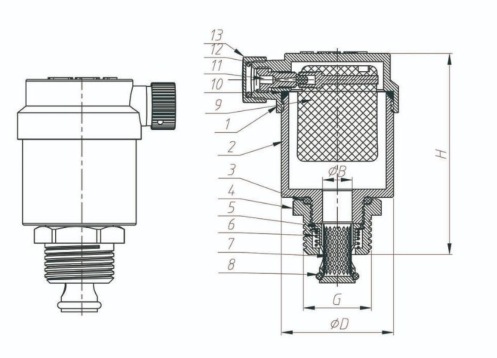

Structural Dimensions
Nominal Diameter | PN | Dimensions (mm) | Thread G | |||
|---|---|---|---|---|---|---|
Inch | mm | B | H | D | ||
1/2" | 15 | 10/16 | 9 | 62 | 34 | 1/2" |
3/4" | 20 | 10/16 | 9 | 62 | 34 | 3/4" |
1" | 25 | 10/16 | 9 | 62 | 34 | 1" |
Material List
No. | Part Name | Standard Configuration |
|---|---|---|
1 | Air Vent Body | S304 |
2 | Air Vent Cap | S304 |
3 | O-Ring | NBR |
4 | Connection Cap | S304 |
5 | Core | S304 |
6 | Spring | S304 |
7 | Filter Screen | S304 |
8 | O-Ring | NBR |
9 | Float Ball | PF |
10 | Sealing Ring | NBR |
11 | Float Ball Core | PF |
12 | O-Ring | NBR |
13 | Air Exhaust Cap | S304 |
