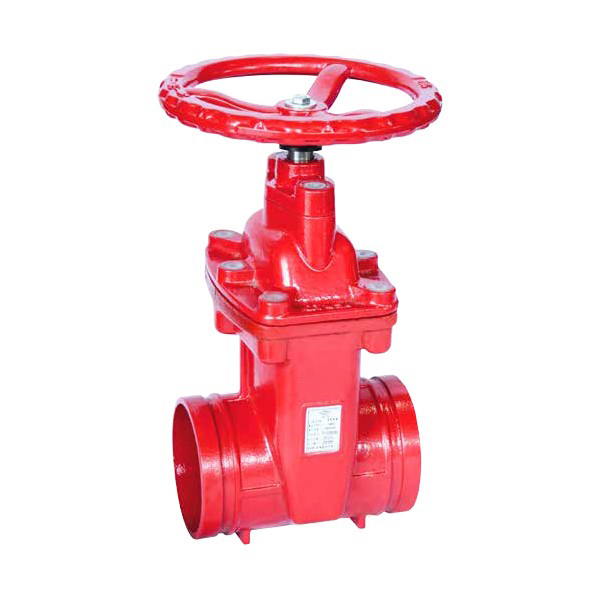

Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | Elastic wedge-shaped gate | Ductile iron QT450-10 + EPDM rubber | |
3 | Sliding gate nut | Ductile cast iron QT450-10 | |
4 | valve stem | Stainless steel 420 | Stainless steel 304/316/431; Aluminum bronze |
5 | Valve cover sealing gasket | EPDM | acrylonitrile-butadiene rubber |
6 | Valve cover | Ductile cast iron QT450-10 | |
7 | Stop ring | Brass HPb59-1 | |
8 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
9 | Cover lid | Ductile cast iron QT450-10 | |
10 | scraper seal | EPDM | acrylonitrile-butadiene rubber |
11 | hand wheel | Ductile cast iron QT450-10 | |
12 | Large flat washer | Zinc-coated steel | Stainless steel 304/316 |
13 | Grade 4.8 hexagonal bolt | Zinc-coated steel | Stainless steel 304/316 |
14 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
15 | Grade 8.8 internal hex bolt | Zinc-coated steel | Stainless steel 304/316 |
16 | Grade 8.8 internal hex bolt | Zinc-coated steel | Stainless steel 304/316 |
Note: If you need to select a non-standard configuration, specify it in the order or contract.

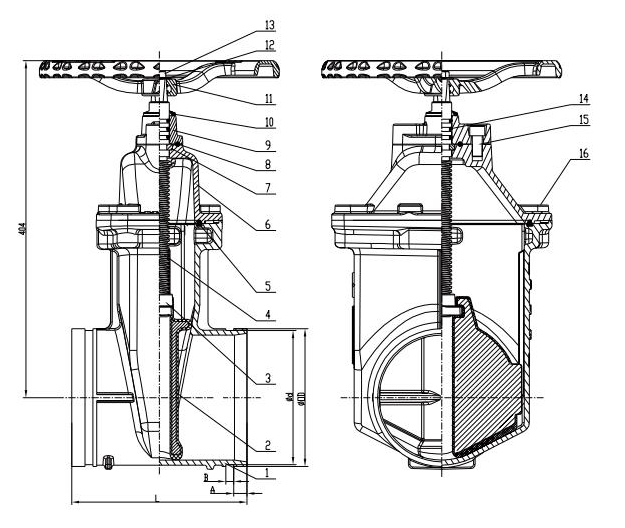

Structure size
Nominal diameter DN | nominal pressure | size （mm） | |||||
Inch | mm | L | H | OD | d | A | B |
2" | 50 | 140 | 210 | 60.3 | 57.15 | 15.88 | 7.92 |
21/2" | 65 | 150 | 235 | 76.1 | 72.26 | 15.88 | 7.92 |
3" | 80 | 160 | 260 | 88.9 | 84.94 | 15.88 | 7.92 |
4" | 100 | 178 | 303 | 114.3 | 110.08 | 15.88 | 9.52 |
5" | 125 | 190 | 357 | 139.7 | 135.48 | 15.88 | 9.52 |
6" | 150 | 210 | 404 | 165.1 | 160.9 | 15.88 | 9.52 |
8" | 200 | 235 | 482 | 219.1 | 214.4 | 19.05 | 11.13 |
