Z85X-1 Grooved concealed-shaft flexible-sealed visible gate valve

0 evaluate

库存： 0

Inquire

Add to Basket

Product Description

Material list

order number	part	standard layout	Optional configuration
1	valve body	Ductile cast iron QT450-10
2	Elastic wedge-shaped gate	Ductile iron QT450-10 + EPDM rubber
3	valve stem	Stainless steel 420	Stainless steel 304/316/431; Aluminum bronze
4	Grade 8.8 internal hex bolt	Zinc-coated steel	Stainless steel 304/316
5	Valve cover	Ductile cast iron QT450-10
6	O molding ring	acrylonitrile-butadiene rubber	EPDM
7	Cover lid	Ductile cast iron QT450-10
8	hand wheel	Ductile cast iron QT450-10
9	Grade 4.8 hexagonal bolt	Zinc-coated steel	Stainless steel 304/316
10	Large flat washer	Zinc-coated steel	Stainless steel 304/316
11	indicator	Cast Aluminum 104
12	pointer	Cast Aluminum 104
13	scraper seal	EPDM	acrylonitrile-butadiene rubber
14	flat gasket	Zinc-coated steel	Stainless steel 304/316
15	8.8-grade hexagonal bolt	Zinc-coated steel	Stainless steel 304/316
16	O molding ring	acrylonitrile-butadiene rubber	EPDM
17	Stop ring	Brass HPb59-1
18	Valve cover sealing gasket	EPDM	acrylonitrile-butadiene rubber
19	Sliding gate nut	Brass HPb59-1

Note: If you need to select a non-standard configuration, specify it in the order or contract.

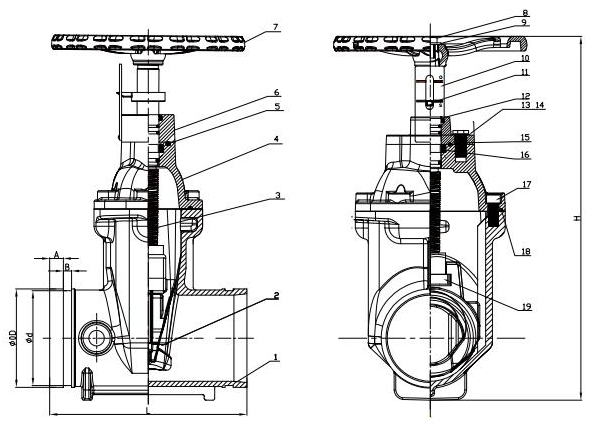

Structure size

Nominal diameter DN		size （mm）
Inch	mm	L	H	OD	d	A	B
2"	50	178	282	60.3	57.15	15.88	7.92
212"	65	190	290	76.1	72.26	15.88	7.92
3"	80	203	331	88.9	84.94	15.88	7.92
4"	100	229	366	114.3	110.08	15.88	9.52
5"	125	254	443	139.7	135.48	15.88	9.52
6"	150	267	490	165.1	160.9	15.88	9.52
8"	200	292	560	219.1	214.4	19.05	11.13
