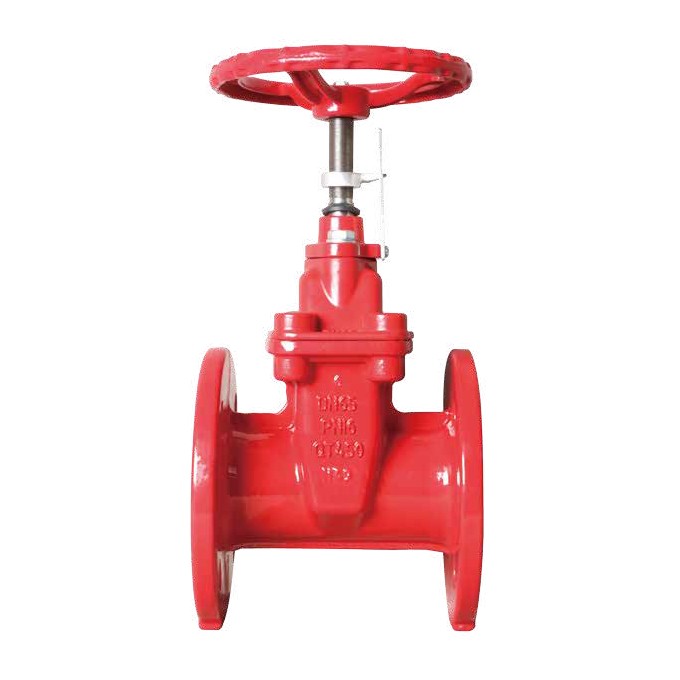

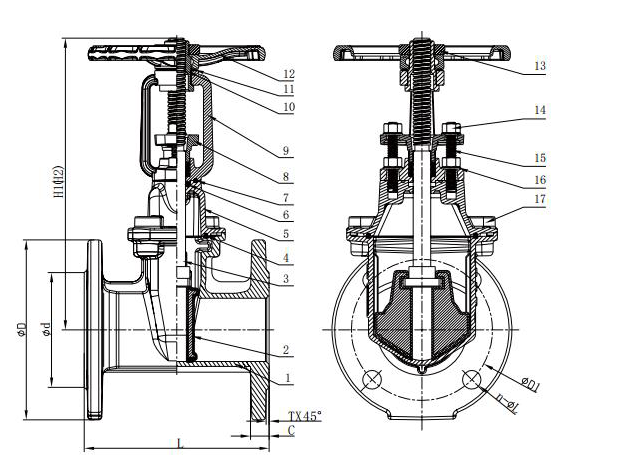

Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | Elastic wedge-shaped gate | Ductile iron QT450-10 + EPDM rubber | |
3 | Sliding gate nut | Ductile cast iron QT450-10 | Brass HPb59-1 |
4 | valve stem | Stainless steel 420 | Stainless steel 304/316/431; Aluminum bronze |
5 | Valve cover sealing gasket | EPDM | acrylonitrile-butadiene rubber |
6 | Valve cover | Ductile cast iron QT450-10 | |
7 | Stop ring | Brass HPb59-1 | |
8 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
9 | Cover lid | Ductile cast iron QT450-10 | |
10 | scraper seal | EPDM | acrylonitrile-butadiene rubber |
11 | pointer | Cast Aluminum 104 | |
12 | indicator | Cast Aluminum 104 | |
13 | hand wheel | Ductile cast iron QT450-10 | |
14 | Grade 4.8 hexagonal bolt | Zinc-coated steel | Stainless steel 304/316 |
15 | Large flat washer | Zinc-coated steel | Stainless steel 304/316 |
16 | 8.8-grade hexagonal bolt | Zinc-coated steel | Stainless steel 304/316 |
17 | flat gasket | Zinc-coated steel | Stainless steel 304/316 |
18 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
19 | Slotted cylindrical head screw | Zinc-coated steel | |
20 | Grade 8.8 internal hex bolt | Zinc-coated steel | Stainless steel 304/316 |
Note: If you need to select a non-standard configuration, specify it in the order or contract.
structure size
Nominal diameter DN | size （mm） | |||||||||
Inch | mm | L | H | D | D1 | d | C | T | n | L |
2" | 50 | 178 | 254 | 165 | 125 | 99 | 19 | 3 | 4 | 19 |
21/2" | 65 | 190 | 290 | 185 | 145 | 118 | 19 | 3 | 4 | 19 |
3" | 80 | 203 | 320 | 200 | 160 | 132 | 19 | 3 | 8 | 19 |
4" | 100 | 229 | 363 | 220 | 180 | 156 | 19 | 3 | 8 | 19 |
5" | 125 | 254 | 422 | 250 | 210 | 184 | 19 | 3 | 8 | 19 |
6" | 150 | 267 | 469 | 285 | 240 | 211 | 19 | 3 | 8 | 23 |
8" | 200 | 292 | 544 | 340 | 295 | 266 | 20 | 3 | 12 | 23 |
