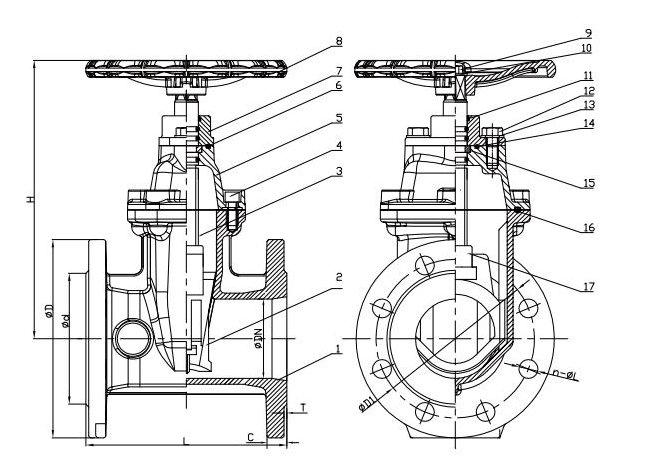

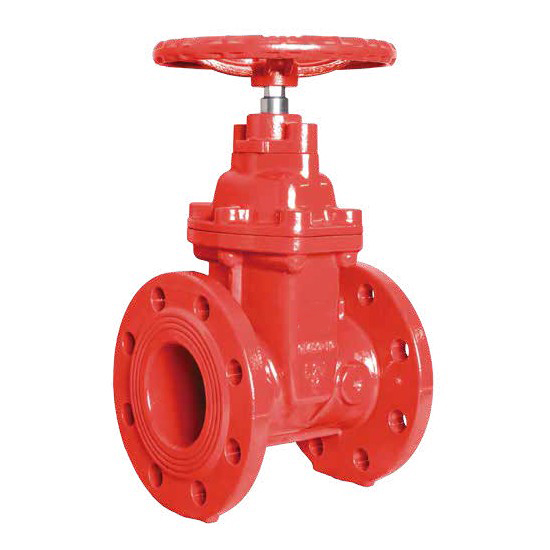

Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | Elastic wedge-shaped gate | Ductile iron QT450-10 + EPDM rubber | |
3 | valve stem | Stainless steel 420 | Stainless steel 304/316/431; Aluminum bronze |
4 | Grade 8.8 internal hex bolt | Zinc-coated steel | Stainless steel 304/316 |
5 | Valve cover | Ductile cast iron QT450-10 | |
6 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
7 | Cover lid | Ductile cast iron QT450-10 | |
8 | hand wheel | Ductile cast iron QT450-10 | |
9 | Grade 4.8 hexagonal bolt | Zinc-coated steel | Stainless steel 304/316 |
10 | Large flat washer | Zinc-coated steel | Stainless steel 304/316 |
11 | scraper seal | EPDM | acrylonitrile-butadiene rubber |
12 | 8.8-grade hexagonal bolt | Zinc-coated steel | Stainless steel 304/316 |
13 | flat gasket | Zinc-coated steel | Stainless steel 304/316 |
14 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
15 | Stop ring | Brass HPb59-1 | |
16 | Valve cover sealing gasket | EPDM | acrylonitrile-butadiene rubber |
17 | Sliding gate nut | Brass HPb59-1 |
Note: If you need to select a non-standard configuration, specify it in the order or contract.
Structure size
Nominal diameter DN | nominal pressure | size （mm） | |||||||||
Inch | mm | PN | L | H | D | D1 | d | C | T | n | L |
2" | 50 | 10/16 | 178 | 218 | 165 | 125 | 99 | 19 | 3 | 4 | 19 |
2.5" | 65 | 10/16 | 190 | 232 | 185 | 145 | 118 | 19 | 3 | 4 | 19 |
3" | 80 | 10/16 | 203 | 281 | 200 | 160 | 132 | 19 | 3 | 8 | 19 |
4" | 100 | 10/16 | 229 | 316 | 220 | 180 | 156 | 19 | 3 | 8 | 19 |
5" | 125 | 10/16 | 254 | 393 | 250 | 210 | 184 | 19 | 3 | 8 | 19 |
6" | 150 | 10/16 | 267 | 420 | 285 | 240 | 211 | 19 | 3 | 8 | 23 |
8" | 200 | 10 | 292 | 490 | 340 | 295 | 266 | 20 | 3 | 8 | 23 |
16 | 12 | 23 | |||||||||
10" | 250 | 10 | 330 | 626 | 405 | 350 | 319 | 22 | 3 | 12 | 23 |
16 | 355 | 12 | 28 | ||||||||
12" | 300 | 10 | 356 | 722 | 460 | 400 | 370 | 24.5 | 4 | 12 | 23 |
16 | 410 | 12 | 28 | ||||||||
