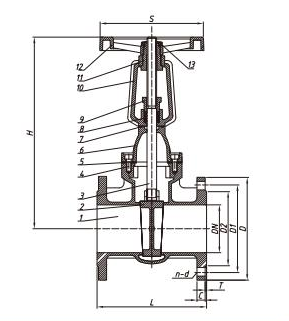

Bill of material
order number | part | standard layout |
1 | Image | QT450 |
2 | Sliding Gate | QT450 |
3 | Ruler | 20-13 |
4 | bolt | carbon steel |
5 | Central flange gasket | Ternary ethylene rubber |
6 | Cover Reading | QT450 |
7 | seal | Ternary ethylene rubber |
8 | Seal Drawing | Ternary ethylene rubber |
9 | Cover lid | QT450 |
10 | support | QT450 |
11 | valve-stem nut | QT450 |
12 | hand wheel | QT450 |
13 | Locking nut | Q235 |
Note: If a non-standard configuration is required, please specify this in the order or contract.
Structure size
Nominal diameter DN | Dimensions (mm) | |||||||||
Inch | mm | L | c | D | H | s | T | n-d | D1 | D2 |
2 | 50 | 180 | 16 | 157 | 3315 | 180 | 2 | 4-18 | 125 | 99 |
25 | 65 | 191 | 15 | 181 | 3295 | 180 | 2 | 4-18 | 145 | 118 |
3° | 80 | 205 | 17 | 196 | 382 | 220 | 2 | 8-18 | 160 | 132 |
4° | 100 | 231 | 18 | 215 | 4025 | 220 | 2 | 8-18 | 180 | 156 |
5 | 125 | 253 | 17 | 251 | 604.5 | 250 | 2 | 8-18 | 210 | 184 |
6 | 150 | 268 | 19 | 280 | 600 | 250 | 2.5 | 8-18 | 250 | 211 |
8° | 200 | 294 | 21 | 340 | 770 | 320 | 2.5 | 8-23 | 295 | 266 |
10 | 250 | 334 | 23 | 407 | 886.5 | 320 | 2.5 | 1228 | 355 | 319 |
12 | 300 | 358 | 27 | 462 | 1439 | 400 | 2.5 | 1228 | 410 | 370 |
