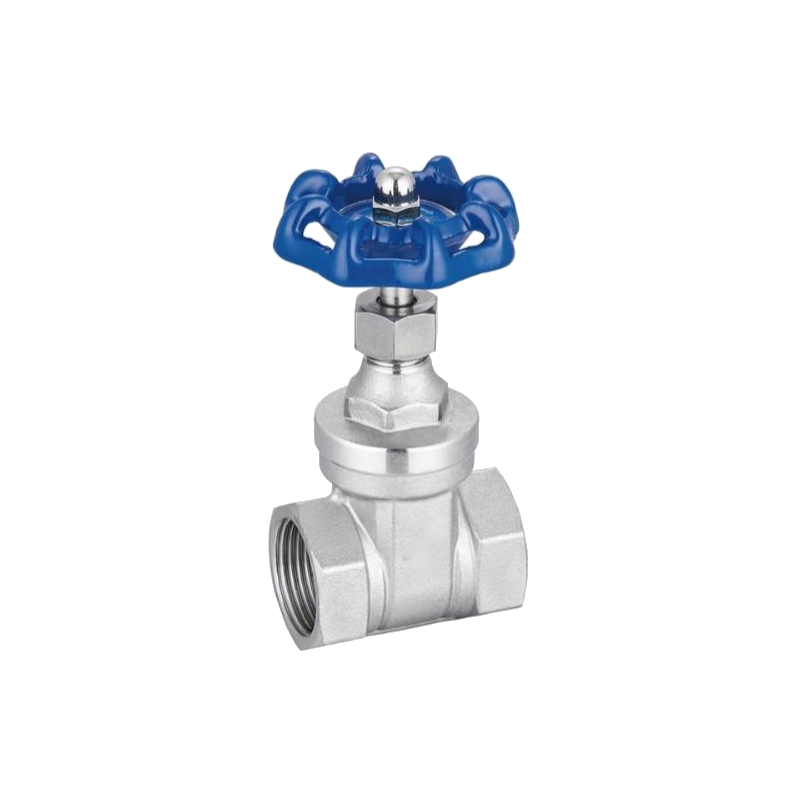

Product Features
The soft-seal gate valve features a flat-bottom design identical to that of the water pipe, effectively preventing debris accumulation and ensuring reliable sealing performance.
The gate plate is fully coated with high-quality rubber, ensuring a secure bond between the rubber and the ductile iron gate plate, precise geometric dimensions, and excellent elasticity.
Technical parameter
Model: Z15X-Z
Design and manufacturing standard: GB/T 8464-2008
Sealing test pressure: 0.6–0.8 MPa
Applicable media: raw water, clean water, wastewater
Connection type: Threaded connection
Nominal pressure: 1.0/1.6 MPa
Shell test pressure: 1.5/2.4 MPa
Media temperature: 0°C to 80°C
Connection Standard: GB/T 7307
Structure size

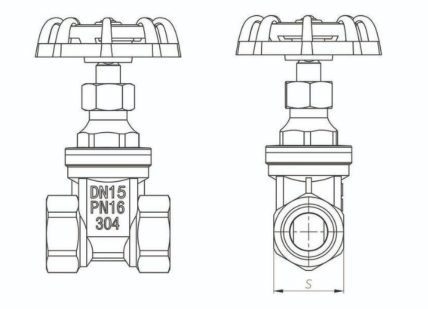

Nominal diameter | PN | size （mm） | ||||||
Inch | mm | L | B | H | D | S | screw thread G | |
1/2" | 15 | 10/16 | 46 | 14 | 80 | 54 | 26 | 1/2" |
3/4" | 20 | 10/16 | 51 | 17 | 88 | 58 | 32 | 3/4" |
1" | 25 | 10/16 | 57 | 24 | 100 | 65 | 38 | 1" |
11/4" | 32 | 10/16 | 58 | 30 | 119 | 72 | 47 | 11/4" |
11/2" | 40 | 10/16 | 62 | 35 | 139 | 72 | 53 | 11/2" |
2" | 50 | 10/16 | 71 | 47 | 152 | 78 | 65 | 2" |
Material List
order number | part | standard layout |

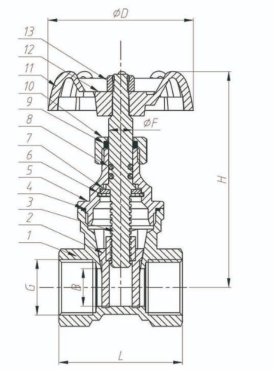

1 | Globe valve body | S304 |
2 | Globe valve plate | 304+NBR |
3 | Globe valve stem | S304 |
4 | gasket ring | NBR |
5 | Globe valve cover | S304 |
6 | Neck spring clip | S304 |
7 | Hollow gasket | S304 |
8 | O molding ring | EPDM |
9 | Internal packing | PTFE |
10 | Hexagonal pressure cap | S304 |
11 | hand wheel | HT150 |
12 | data plate | aluminium |
13 | nut | S304 |
