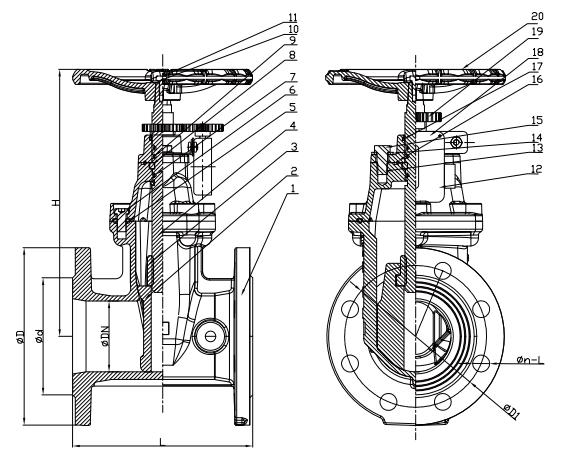

Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | Elastic wedge gate | Ductile iron QT450-10 + EPDM rubber | |
3 | valve stem | Stainless steel 420 | Stainless steel 304/316/431; Aluminum bronze |
4 | Grade 8.8 internal hex bolt | Zinc-coated steel | Stainless steel 304/316 |
5 | Valve cover | Ductile cast iron QT450-10 | |
6 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
7 | Cover lid | Ductile cast iron QT450-10 | |
8 | hand wheel | Ductile cast iron QT450-10 | |
9 | Grade 4.8 hexagonal bolt | Zinc-coated steel | Stainless steel 304/316 |
10 | Large flat washer | Zinc-coated steel | Stainless steel 304/316 |
11 | annunciator | plastics | |
12 | scraper seal | EPDM | acrylonitrile-butadiene rubber |
13 | 8.8-grade hexagonal bolt | Zinc-coated steel | Stainless steel 304/316 |
14 | flat gasket | Zinc-coated steel | Stainless steel 304/316 |
15 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
16 | Stop ring | Brass HPb59-1 | |
17 | Valve cover sealing gasket | EPDM | acrylonitrile-butadiene rubber |
18 | Sliding gate nut | Brass HPb59-1 |
Note: If you need to select a non-standard configuration, specify it in the order or contract.
Structure size
Nominal diameter DN | nominal pressure | size （mm） | |||||||||
Inch | mm | PN | L | H | D | D1 | d | C | T | n | L |
2" | 50 | 10/16 | 178 | 245 | 165 | 125 | 99 | 19 | 3 | 4 | 19 |
2.5" | 65 | 10/16 | 190 | 258 | 185 | 145 | 118 | 19 | 3 | 4 | 19 |
3" | 80 | 10/16 | 203 | 306 | 200 | 160 | 132 | 19 | 3 | 8 | 19 |
