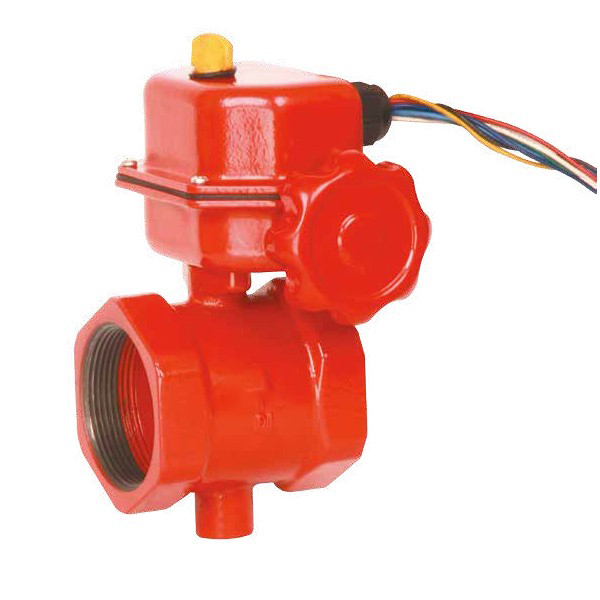

Parameter/Standard
Connection standard: ISO 7-1
Operating temperature: 0°C to 80°C
Working pressure: PN10
Surface treatment: Copper plating and epoxy resin powder coating, compliant with ANSI/AWWA C550 standards.
Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | tightening screw | carbon steel | Stainless steel 304/316 |
3 | Downshaft shaft | stainless steel | Stainless steel 304/316/420/431 |
4 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
5 | Butterfly blade | Q 2 3 5 Steel + EPDM | Q235 steel + nitrile rubber |
6 | Upward shaft | stainless steel | Stainless steel 304/316/420/431 |
7 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
8 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
9 | Signal worm gear | carbon steel |
Note: If you need to select a non-standard configuration, specify it in the order or contract.

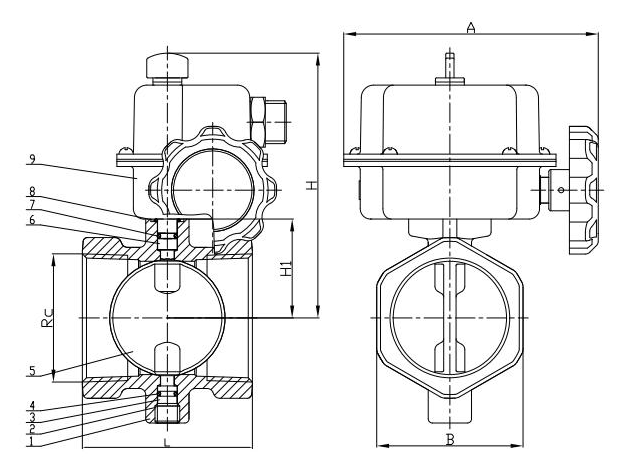

Structure size
Nominal diameter DN | size （mm） | ||||||
Inch | mm | L | H | H1 | A | B | Rc |
1" | 25 | 54 | 115 | 33 | 125 | 41 | 1 |
1.25" | 32 | 67 | 117.5 | 37 | 125 | 49 | 11/4 |
1.5" | 40 | 73 | 121 | 40.5 | 125 | 55.5 | 112 |
2" | 50 | 82.5 | 131 | 48 | 125 | 71 | 2 |
