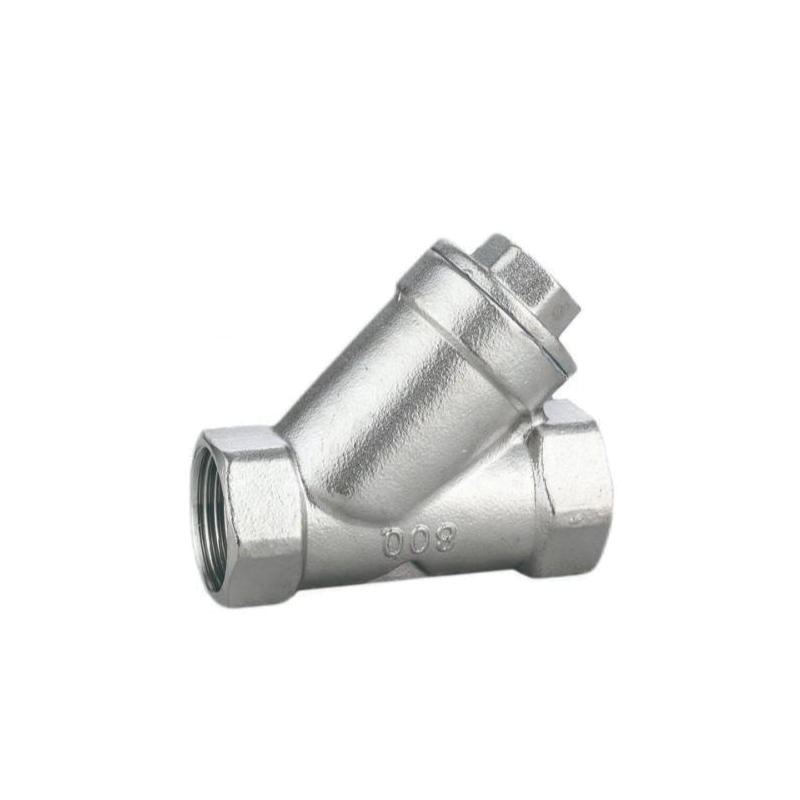

Product Overview
This product is installed in pipelines to filter out impurities such as dirt and rust from the medium. It can also be placed at the inlet of equipment such as pressure reducing valves, pressure relief valves, and constant level valves to remove impurities from the medium, thereby protecting the equipment for normal operation. This product is suitable for water, oil, gas, and other media. Generally, the mesh size for water is 18–30 mesh, for gas is 10–100 mesh, and for oil is 100–480 mesh. Custom filter mesh sizes are available upon request.
Material List
No. | Part | Standard Configuration |
|---|---|---|
1 | Valve Body | Stainless Steel 304 |
2 | Filter Mesh | Stainless Steel 304 |
3 | Gasket | PTFE |
4 | Valve Cover | Stainless Steel 304 |
Product Features
Small size, easy installation and cleaning
High filtration precision, stable effluent quality
Simple cleaning, low maintenance cost, large flow capacity
Straight-through media channel, low flow resistance, convenient blowdown
Technical Parameters
Parameter | Value / Specification |
|---|---|
Model | V1-Z |
Design & Manufacturing Standard | GB/T14382 |
Nominal Pressure | 1.0 / 1.6 MPa |
Seal Test Pressure | 1.1 / 1.76 MPa |
Shell Test Pressure | 1.5 / 2.4 MPa |
Applicable Media | Oil, gas, clean water, sewage, etc. |
Medium Temperature | 0°C ~ 80°C |
Connection Type | Threaded |
Connection Standard | GB/T7307 |

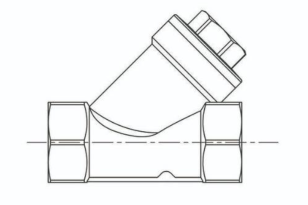

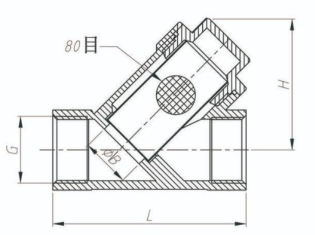

Structural Dimensions
Nominal Bore | PN | Dimensions (mm) | Thread G | ||
|---|---|---|---|---|---|
Inch | mm | L | B | H | |
1/2" | 15 | 59 | 15 | 42 | 1/2" |
3/4" | 20 | 72 | 19 | 48 | 3/4" |
1" | 25 | 83 | 25 | 60 | 1" |
1-1/4" | 32 | 86 | 32 | 68 | 1-1/4" |
1-1/2" | 40 | 106 | 37 | 73 | 1-1/2" |
2" | 50 | 122 | 47 | 83 | 2" |
