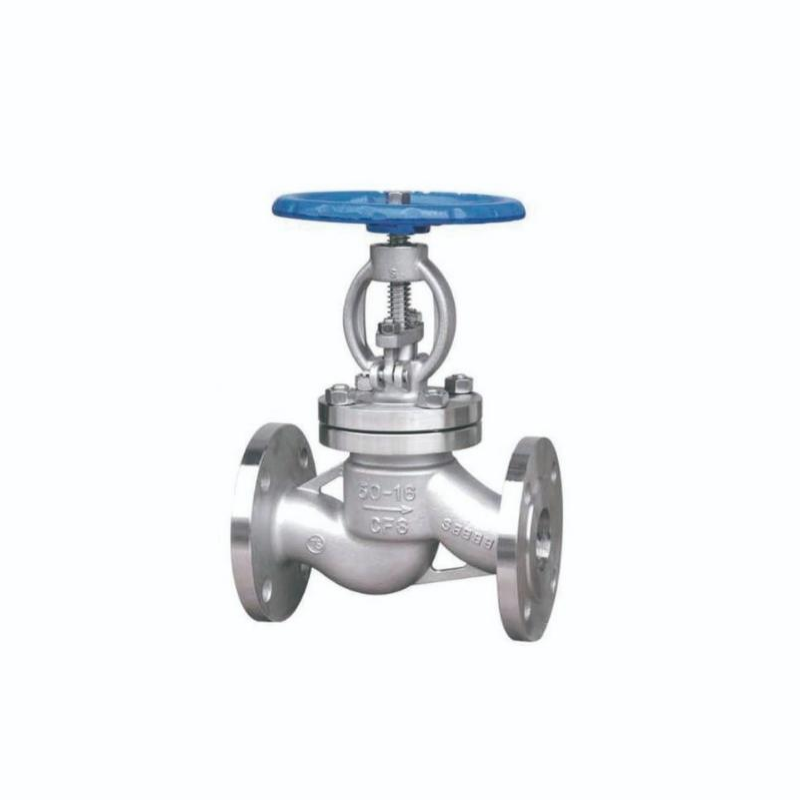

J41H flange cut-off valve

Product Overview

The hard-sealed globe valve is a shut-off valve that controls pipeline opening and closing by moving the disc vertically along the central axis of the seat passage. It is suitable for use as an opening/closing device in steam and water pipelines, but generally not recommended for media with high viscosity, particulate content, or prone to coking or sedimentation. This valve finds extensive application in industries such as petrochemicals, power generation, metallurgy, urban construction, papermaking, and pharmaceuticals.

Product Features

Simple structure, convenient for manufacturing and maintenance; small working stroke and short opening/closing time.

Exhibits excellent sealing performance, low friction, and prolonged service life.

Exhibits excellent strength, stiffness, and flow capacity

technical parameter

Model: J41H

Design and manufacturing standard: GB/T 12235

Sealing test pressure: 0.6–0.7 MPa

Applicable media: water, steam, oils, etc.

Connection type: Flange connection

Nominal pressure: 1.0/1.6 MPa

Shell test pressure: 1.5–2.4 MPa

Media temperature: ≤425°C

Connection Standard: JB/T79

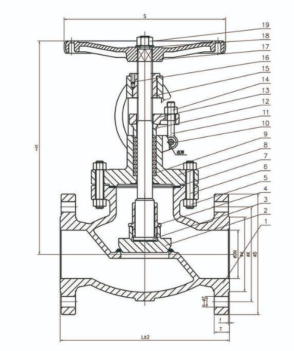

structure size

Material List
