HC42X Silent check valve

Product Overview

A silent check valve is a valve that automatically opens and closes its disc through the flow of the medium itself, designed to prevent backflow. Also known as a check valve, one-way valve, or backflow valve, its primary functions include preventing medium backflow, avoiding reverse rotation of pumps and drive motors, and controlling medium discharge from containers. It can be classified into swing-type check valves (rotating around their center of gravity) and lift-type check valves (moving along their axis).

Product Features

Streamlined design results in minimal pressure loss;

The valve flap's opening/closing stroke is very short, as is the pump shutdown stroke.

Close the pump quickly when shutting it down to prevent loud water hammer sounds and achieve a silent operation.

Technical Parameter

Model: HC42X

Design and Manufacturing Standard: CJ/T 255-2007

Shell test pressure: 2.4 MPa

Connection type: Flange connection

Applicable medium: water

Nominal pressure: 1.6 MPa

Media temperature: 0–80°C

Connection standard: GB/T 9113

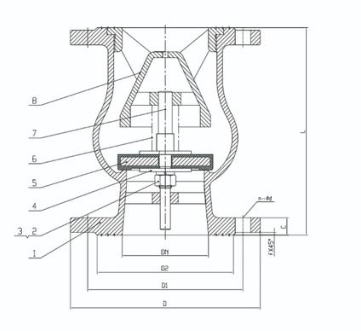

Structure Size

Material List
