Model: HC41X-16P
Design and Manufacturing Standard: GB/T 12235-2007
Sealing test pressure: 1.76 MPa
Applicable medium: Water and weakly corrosive fluids
Connection type: Flange connection
Nominal pressure: 1.6 MPa
Shell test pressure: 2.4 MPa
Media temperature: 0°C to 80°C
Connection Standard: GB/T 9119-20

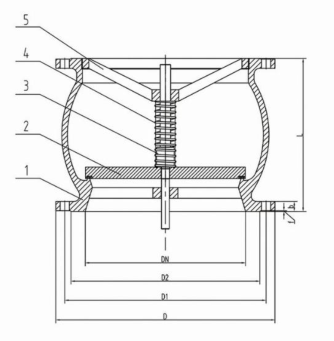

Structure size
DN | PN | size （mm） | ||||||
mm | L | D | D1 | D2 | n-d | b | f | |
50 | 16 | 100 | 165 | 125 | 100 | 4-18 | 20 | 3 |
65 | 16 | 120 | 185 | 145 | 120 | 4-18 | 20 | 3 |
80 | 16 | 150 | 200 | 160 | 135 | 8-18 | 20 | 3 |
100 | 16 | 160 | 220 | 180 | 155 | 8-18 | 22 | 3 |
125 | 16 | 180 | 250 | 210 | 185 | 8-18 | 22 | 3 |
150 | 16 | 200 | 285 | 240 | 210 | 8-23 | 24 | 3 |
200 | 16 | 220 | 340 | 295 | 265 | 12-23 | 24 | 3 |
250 | 16 | 250 | 405 | 355 | 320 | 12-26 | 26 | 4 |
300 | 16 | 300 | 460 | 410 | 375 | 12-26 | 28 | 4 |
Material List
order number | part | standard layout |
1 | valve body | Stainless steel 304 |
2 | Valve flap | Stainless steel 304 + NBR |
3 | Spring | Stainless steel 304 |
4 | valve stem | Stainless steel 304 |
5 | support | Stainless steel 304 |
