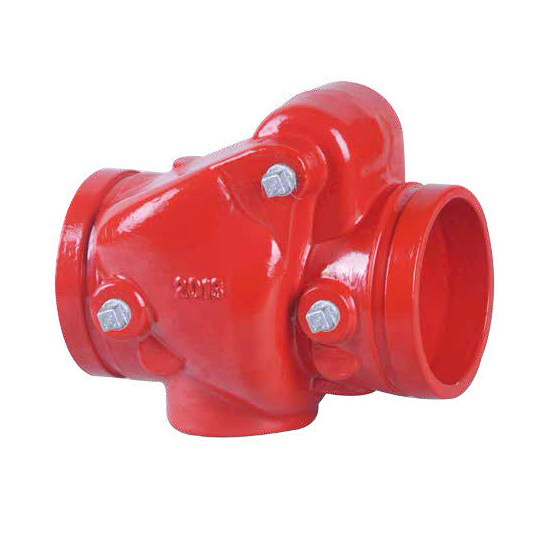

Parameter/Standard
Connection standard: GB 5135.11
Working pressure: 200 PSI/300 PSI
Operating temperature: 0°C to 80°C
Surface treatment: Epoxy resin powder spraying, compliant with the ANSI/AWWA C550 standard.
Or spray paint according to customer requirements.

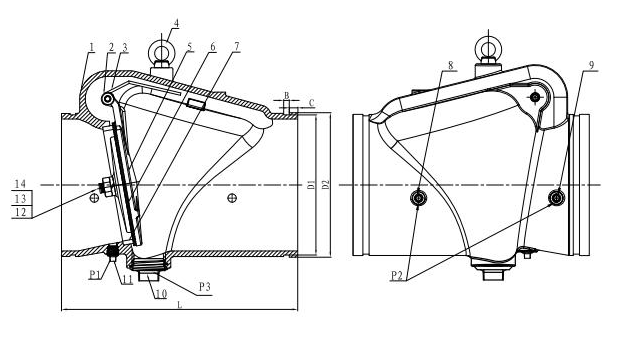

Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | pin roll | Stainless steel 420 | |
3 | Spring | Stainless steel 304 | Stainless steel 316 |
4 | ring | Zinc-coated steel | |
5 | Valve flap | DN50~100: Stainless steel 304 DN125~300: Ductile iron QT450-10 | Stainless steel 304 |
6 | Valve disc sealing ring | EPDM | acrylonitrile-butadiene rubber |
7 | valve seat | Bronze ASTM B62 C83600 (pressed type) | Stainless steel 304/316 compression-type or threaded type |
8 | plug | Hot-dip galvanized malleable cast iron | Bronze ASTM B584 |
9 | plug | Hot-dip galvanized malleable cast iron | Bronze ASTM B584 |
10 | plug | Hot-dip galvanized malleable cast iron | Bronze ASTM B584 |
11 | plug | Hot-dip galvanized malleable cast iron | Bronze ASTM B584 |
12 | bolt | Stainless steel 304 | Stainless steel 316 |
13 | Gasket | Stainless steel 304 | Stainless steel 316 |
14 | nut | Stainless steel 304 | Stainless steel 316 |
Note: If you need to select a non-standard configuration, specify it in the order or contract.
Structure size
Nominal diameter DN | size （mm） | |||||||||
Inch | mm | L | D1 | D2 | B | C | P1 | P3 | P2 | |
standard layout | Optional configuration | |||||||||
2" | 50 | 171 | 57.15 | 60.3 | 7.93 | 15.88 | 1/2 | 1/2 | 1 | 3/8 |
2.5" | 65 | 184 | 69.09 | 73.0 | 7.93 | 15.88 | 1/2 | 1/2 | 11/4 | 3/8 |
2.5" | 65 | 184 | 72.26 | 76.1 | 7.93 | 15.88 | 1/2 | 1/2 | 11/4 | 3/8 |
3" | 80 | 197 | 84.94 | 88.9 | 7.93 | 15.88 | 1/2 | 1/2 | 11/4 | 3/8 |
4" | 100 | 206 | 110.08 | 114.3 | 9.53 | 15.88 | 1/2 | 1/2 | 2 | 1/2 |
5" | 125 | 248 | 135.48 | 139.7 | 9.53 | 15.88 | 1/2 | 1/2 | 2 | 1/2 |
5" | 125 | 248 | 137.03 | 141.3 | 9.53 | 15.88 | 1/2 | 1/2 | 2 | 1/2 |
6" | 150 | 324 | 160.9 | 165.1 | 9.53 | 15.88 | 1/2 | 1/2 | 2 | 1/2 |
6" | 150 | 324 | 163.96 | 168.3 | 9.53 | 15.88 | 1/2 | 1/2 | 2 | 1/2 |
8" | 200 | 371 | 214.4 | 219.1 | 11.13 | 19.05 | 1/2 | 1/2 | 2 | 1/2 |
10" | 250 | 457 | 268.28 | 273.0 | 12.7 | 19.05 | 1/2 | 1/2 | 2 | 1/2 |
12" | 300 | 535 | 318.29 | 323.9 | 12.7 | 19.05 | 1/2 | 1/2 | 2 | 1/2 |
