Parameter/Standard
Connection standard: GB/T 17241.6
Operating temperature: 0°C to 80°C
Working pressure: PN10/16
Surface treatment: Epoxy resin powder coating, compliant with ANSI/AWWA C550 standard.

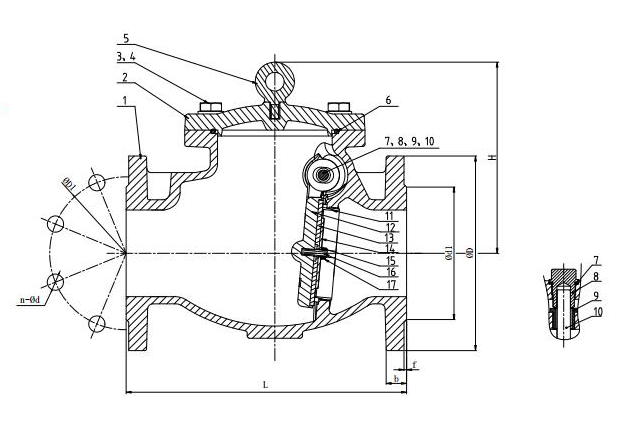

Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | Valve cover | Ductile cast iron QT450-10 | |
3 | Flat washer | Carbon steel galvanized | Stainless steel 304/316 |
4 | bolt | Carbon steel galvanized | Stainless steel 304/316 |
5 | ring | Carbon steel galvanized | |
6 | ○ molding ring | acrylonitrile-butadiene rubber | EPDM |
7 | Gasket | teflon | |
8 | plug | Stainless steel 304 | |
9 | axle sleeve | yellow metal | |
10 | pin roll | Stainless steel 420 | Stainless steel 304/316 |
11 | valve seat | yellow metal | |
12 | Valve flap | Ductile cast iron QT450-10 | |
13 | Valve disc sealing gasket | EPDM | acrylonitrile-butadiene rubber |
14 | Valve disc cover | Ductile iron QT450-10; Stainless steel 304 | |
15 | spring washer | Stainless steel 304 | Stainless steel 316 |
16 | double-screw bolt | Stainless steel 304 | Stainless steel 316 |
17 | nut | Stainless steel 304 | Stainless steel 316 |
Note: If you need to select a non-standard configuration, specify it in the order or contract.
Structure size
Public Name: Diameter D N | nominal pressure | size （mm） | |||||||||
Inch | mm | PN | L | D | D1 | d1 | b | E | H | n | d |
2" | 50 | 10/16 | 203 | 165 | 125 | 99 | 19 | 3 | 133 | 4 | 19 |
2.5" | 65 | 10/16 | 216 | 185 | 145 | 118 | 19 | 3 | 150 | 4 | 19 |
3" | 80 | 10/16 | 241 | 200 | 160 | 132 | 19 | 3 | 150 | 8 | 19 |
4" | 100 | 10/16 | 292 | 220 | 180 | 156 | 19 | 3 | 218 | 8 | 19 |
5" | 125 | 10/16 | 330 | 250 | 210 | 184 | 19 | 3 | 245 | 8 | 19 |
6" | 150 | 10/16 | 356 | 285 | 240 | 211 | 19 | 3 | 290 | 8 | 23 |
8" | 200 | 10 | 495 | 340 | 295 | 266 | 20 | 3 | 355 | 8 | 23 |
16 | 495 | 340 | 295 | 266 | 20 | 3 | 12 | 23 | |||
10" | 250 | 10 | 622 | 400 | 350 | 319 | 22 | 3 | 420 | 12 | 23 |
16 | 622 | 400 | 355 | 319 | 22 | 3 | 12 | 28 | |||
12" | 300 | 10 | 698 | 455 | 400 | 370 | 24.5 | 4 | 465 | 12 | 23 |
16 | 698 | 455 | 410 | 370 | 24.5 | 4 | 12 | 28 | |||
