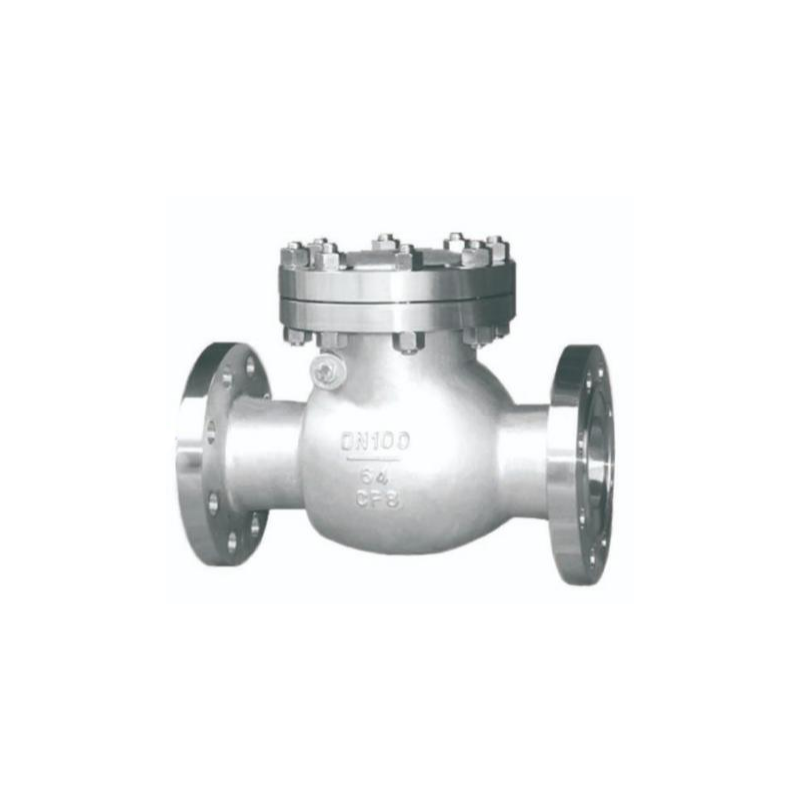

H44W Rotary check valve

Product Overview

The rotary check valve, also known as a one-way valve or check valve, is used in pipelines where the medium flows in a single direction.

The valve prevents backflow of the medium in the pipeline. This type of valve belongs to the automatic valve category and only allows the medium to flow in one direction.

Flow in one direction to prevent accidents. Primarily used in the petroleum, chemical, and pharmaceutical industries.

On pipelines for fertilizers, electricity, etc.

Product Features

The valve adopts an internally mounted rocker-arm rotary opening structure, with all operating components housed within the valve body. This design eliminates any external leakage points, effectively preventing medium leakage.

The connection between the rocker arm and the valve disc employs a spherical joint structure, granting the valve disc a certain degree of freedom over a 360° range with minimal positional compensation.

Technical Parameter

Model: H44W

Design and manufacturing standard: GB/T 12235

Nominal pressure: 1.0/1.6 MPa

Sealing test pressure: 0.6–0.7 MPa

Shell test pressure: 1.5–2.4 MPa

Applicable media: water, steam, oils, etc.

Media temperature: ≤425°C

Sealing test pressure: 0.6–0.7 MPa

Shell test pressure: 1.5–2.4 MPa

Connection type: Flange connection

Connection standard: JB/T79

Connection type: Flange connection

Structural Dimensions
