Product Overview
The lift-type check valve, also known as a check valve or one-way valve, is a valve where the disc moves along the vertical centerline of the valve body. It operates by utilizing the natural flow of the medium within the pipeline to maintain the valve in either an open or closed position, effectively preventing backflow. This product is widely used in industries such as petroleum, chemical, and textile dyeing, and can be applied to media including water, steam, and oils.
Product Features
The intrinsic quality remains stable.
Short valve disc opening/closing time
The pressure-bearing component is cast using precision casting technology.
Technical Parameter
Model: H41W
Design and manufacturing standard: GB/T 12235
Sealing test pressure: 0.6–0.7 MPa
Applicable media: water, steam, oils, etc.
Connection type: Flange connection
Nominal pressure: 1.0/1.6 MPa
Shell test pressure: 1.5–2.4 MPa
Media temperature: ≤425°C
Connection Standard: JB/T79

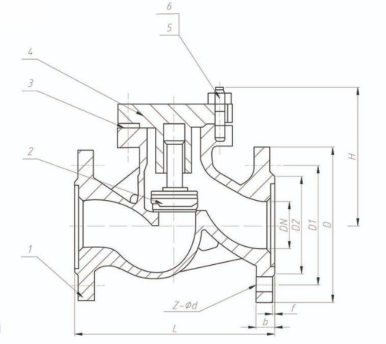

Structure Size
Nominal diameter | PN | size （mm） | |||||||
Inch | mm | L | D | D1 | D2 | b-f | Z-Dd | H | |
2" | 50 | 16 | 230 | 160 | 125 | 100 | 16-3 | 4-φ18 | 140 |
2.5" | 65 | 16 | 290 | 180 | 145 | 120 | 18-3 | 4-φ18 | 150 |
3" | 80 | 16 | 310 | 195 | 160 | 135 | 20-3 | 8-φ18 | 170 |
4" | 100 | 16 | 350 | 215 | 180 | 155 | 20-3 | 8-φ18 | 185 |
5" | 125 | 16 | 400 | 245 | 210 | 185 | 22-3 | 8-φ18 | 195 |
6" | 150 | 16 | 480 | 280 | 240 | 210 | 24-3 | 8-φ23 | 225 |
8" | 200 | 16 | 550 | 335 | 295 | 265 | 26-3 | 12-φ23 | 250 |
10” | 250 | 16 | 650 | 405 | 355 | 320 | 30-3 | 12-φ25 | 270 |
12" | 300 | 16 | 750 | 460 | 410 | 375 | 30-4 | 12-φ25 | 300 |
Material List
order number | part | standard layout | Optional configuration |
1 | valve body | CF8 | 316 |
2 | Valve flap | CF8 | 316 |
3 | Sealing gasket | Stainless steel + graphite | PTFE |
4 | Valve cover | CF8 | 316 |
5 | bolt | SS304 | 35CrMoA |
6 | nut | SS304 | 35CrMoA\45 |
