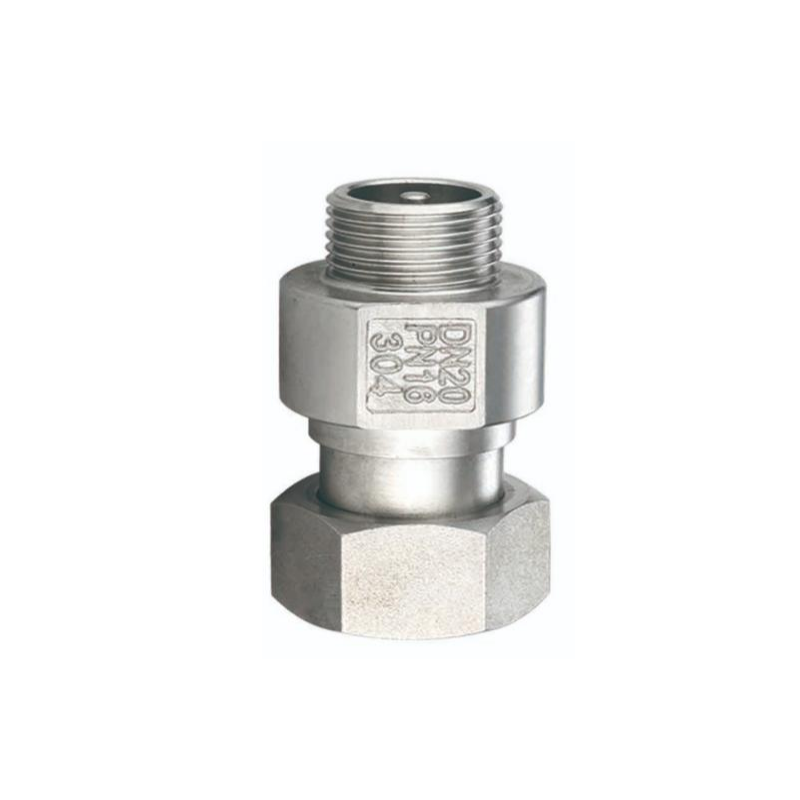

H32X Stainless steel anti-interference valve

Product Overview

The anti-interference valve is a device designed to prevent mutual interference between water meters. Once installed, it completely eliminates meter rotation and functions as a check valve, effectively preventing customer complaints and payment defaults while reducing operational costs for water supply companies.

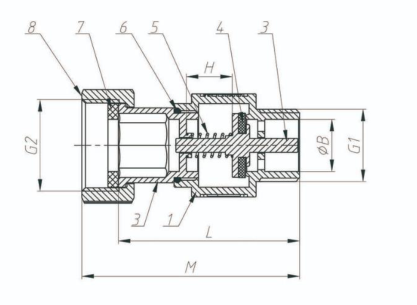

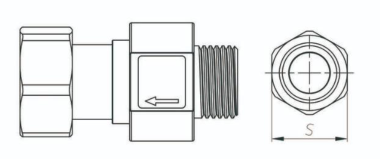

Product Features | Structural Dimensions

It has a check valve function;

Not subject to normal water supply pressure and flow rate limitations;

It features anti-interference functionality between household meters, effectively preventing the self-rotation of water meters.

The structural length matches that of the water meter fitting, ensuring easy installation and saving one water meter fitting.

Technical parameter

Model: H32X

Design and manufacturing standard: GB/T 8464   Nominal pressure: 1.0/1.6 MPa

Sealing test pressure: 0.6–0.8 MPa

Shell test pressure: 1.5/2.4 MPa

Applicable media: raw water, clean water, wastewater   Media temperature: 0°C–80°C

Connection type: Threaded connection

Connection standard: GB/T 7307

Material List
