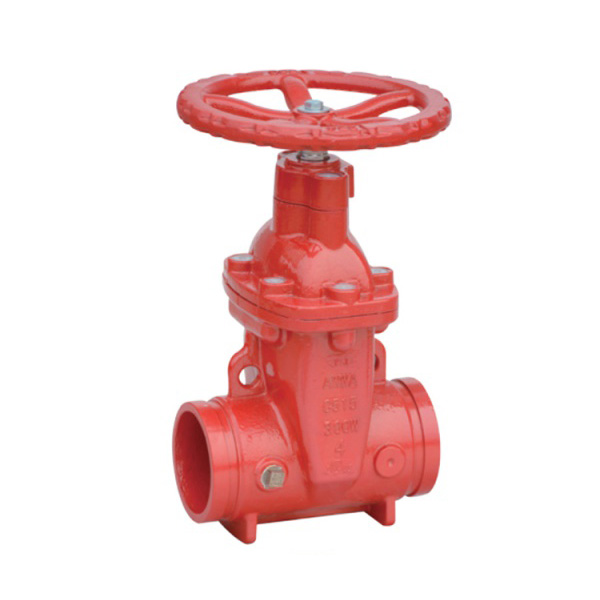

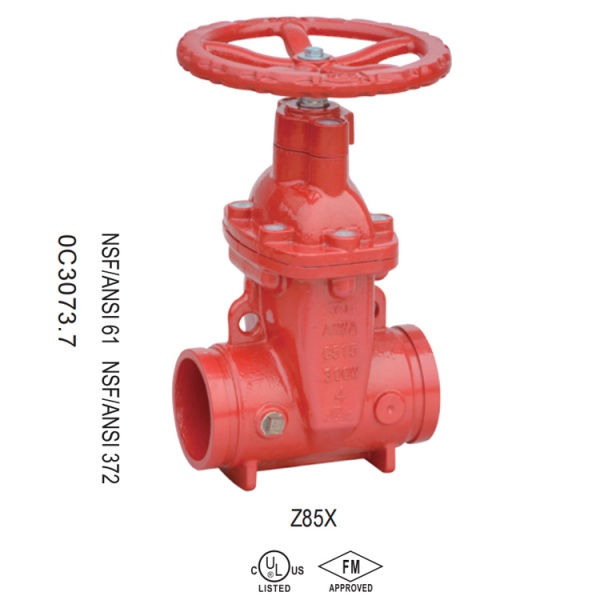

Description
• Connection Ends: Groove to AWWA C606
• Working Pressure: 300PSI 200PSI and 250PSI available upon request
• Temperature Range: 0℃ - 80℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 or painting upon request
Material list
Part No. | Part | Standard Specification | Options |
|---|---|---|---|
1 | Valve Body | ASTM A536, 65-45-12 | |
2 | Resilient Wedge Disc | ASTM A536, 65-45-12+EPDM | |
3 | Stem | Stainless Steel | AISI 304, AISI 316, AISI 420, AISI 431 |
4 | Bonnet Gasket | EPDM | NBR |
5 | Bonnet | ASTM A536,65-45-12 | |
6 | O-Ring | NBR | EPDM |
7 | Gland | ASTM A536,65-45-12 | |
8 | Handwheel | ASTM A536,65-45-12 | Pressed Steel |
9 | Bolt | Carbon Steel Zinc Plated | AISI 304, AISI 316 |
10 | Flat Washer | Carbon Steel Zinc Plated | AISI 304, AISI 316 |
Note: For special material re quest other than standard specification, ple ase indicate dearly on the inquiry or order listSize 2"-3" with 1pc of 3/8" bronze NPT tapping plug, size 4"-5" with 1pc of 1/2" bronze NPT tapping plug, size6"~12 with 1pc of 3/4" bronze NPT tapping plug.
DN | Dimensions(mm) | ||||||
|---|---|---|---|---|---|---|---|
Inch | mm | L | H | OD | d | A | B |
2" | 50 | 178 | 254 | 60.3 | 57.15 | 15.88 | 7.92 |
2.5" | 65 | 190 | 275 | 73 | 69.09 | 15.88 | 7.92 |
3" | 80 | 203 | 301 | 88.9 | 84.94 | 15.88 | 7.92 |
4" | 100 | 229 | 355 | 114.3 | 110.08 | 15.88 | 9.52 |
5" | 125 | 254 | 393 | 141.3 | 137.03 | 15.88 | 9.52 |
6" | 150 | 267 | 448 | 168.3 | 163.96 | 15.88 | 9.52 |
8" | 200 | 292 | 548 | 219.1 | 214.4 | 19.05 | 11.13 |
10" | 250 | 330 | 626 | 273 | 268.28 | 19.05 | 12.7 |
12" | 300 | 356 | 722 | 323.9 | 318.29 | 19.05 | 12.7 |
