Description
• Design Standard: MSS SP-67
• Connection Ends: Groove to AWWA C606
• Top Flange Standard: ISO 5211
• Working Pressure: 300PSI/363PSI 175PSI, 200PSI and 250PSI available upon request
• Temperature Range: 0℃ - 80℃
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

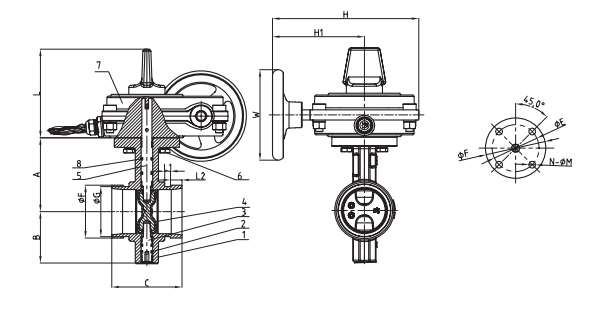

Material list
Part No. | Part | Standard Specification | Options |
|---|---|---|---|
1 | Body | ASTM A536,65-45-12 | |
2 | O-Ring | NBR | EPDM |
3 | Stub Shaft | AISI 431 | |
4 | Disc | ASTM A536,65-45-12+EPDM | ASTM A536,65-45-12+NBR |
5 | Drive Shaft | AISI 431 | |
6 | Hex Nut | Carbon Steel Zinc plated | |
7 | Signal Gearbox | Body:ASTM A536,65-45-12 | |
8 | O-Ring | NBR | EPDM |
Note: For special material request other than standard specification, please indicate clearly on the inquiry or order list.
