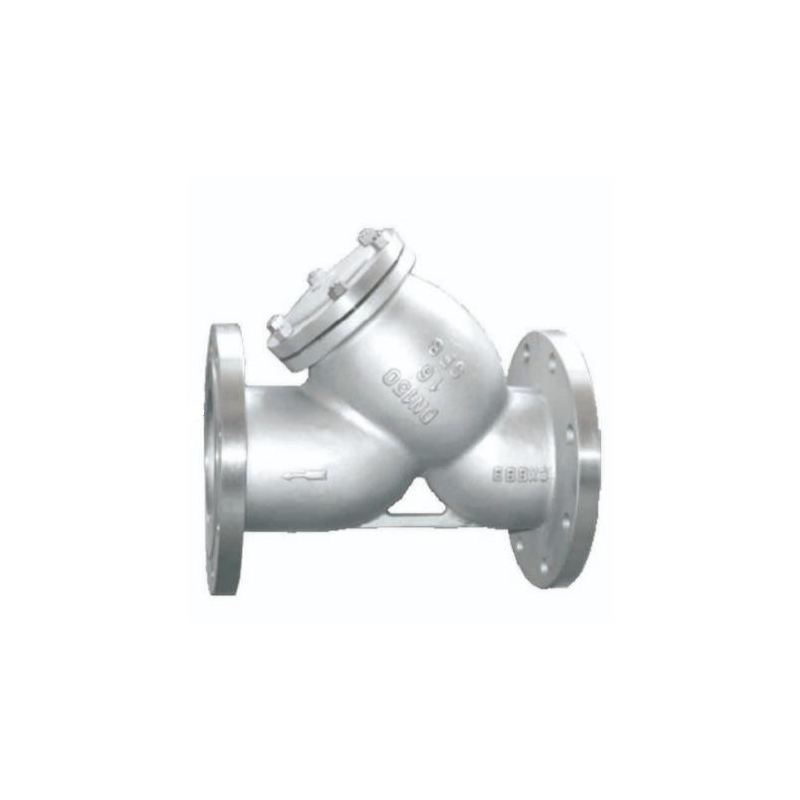

The GL41H flange filter is designed to remove contaminants such as dirt and rust from pipeline media. It can also be installed at the inlet of pressure-reducing valves, pressure relief valves, level control valves, or other equipment to eliminate impurities in the medium, thereby ensuring the proper operation of valves and equipment.
Product Features
Compact in size, easy to install and clean
High pollution discharge capacity, simple cleaning process, and low maintenance costs; high filtration accuracy, large flow rate, and stable effluent water quality.
technical parameter
Model: GL41H
Design and manufacturing standard: GB/T 14382 Shell test pressure: 1.5/2.4 MPa
Connection type: Flange connection
Applicable media: water, steam, oils, etc.
Nominal pressure: 1.0/1.6 MPa
Media temperature: 0–80°C
Connection Standard: JB/T79

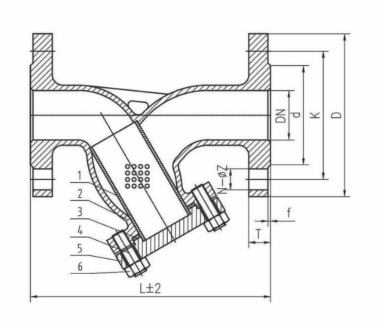

structure size
DN | PN | size （mm） | ||||||
mm | d | K | D | N-Z | f | T | L | |
15 | 16 | 45 | 65 | 91 | 4-14 | 2 | 12 | 150 |
20 | 16 | 55 | 75 | 101 | 4-14 | 2 | 12 | 150 |
25 | 16 | 65 | 85 | 111 | 4-14 | 2 | 12 | 160 |
32 | 16 | 78 | 100 | 131 | 4-18 | 2 | 14 | 180 |
40 | 16 | 85 | 110 | 141 | 4-18 | 2 | 14 | 205 |
50 | 16 | 100 | 125 | 156 | 4-18 | 3 | 16 | 220 |
65 | 16 | 120 | 145 | 176 | 4-18 | 3 | 16 | 255 |
80 | 16 | 135 | 160 | 191 | 8-18 | 3 | 18 | 280 |
100 | 16 | 155 | 180 | 211 | 8-18 | 3 | 18 | 300 |
125 | 16 | 185 | 210 | 241 | 8-18 | 3 | 20 | 340 |
150 | 16 | 210 | 240 | 276 | 8-23 | 3 | 22 | 390 |
200 | 16 | 265 | 295 | 331 | 12-23 | 3 | 24 | 490 |
250 | 16 | 320 | 355 | 401 | 12-25 | 3 | 28 | 540 |
300 | 16 | 375 | 410 | 456 | 12-25 | 4 | 28 | 590 |
Material List
order number | part | standard layout | Optional configuration |
1 | Filter | Stainless steel 304 | Stainless steel 304/316 |
2 | valve body | Stainless steel 304 | Stainless steel 304/316 |
3 | Sealing gasket | PTFE | |
4 | bolt | Zinc-coated steel | |
5 | Valve cover | Stainless steel 304 | Stainless steel 304/316 |
6 | nut | Zinc-coated steel | Stainless steel 304/316 |
