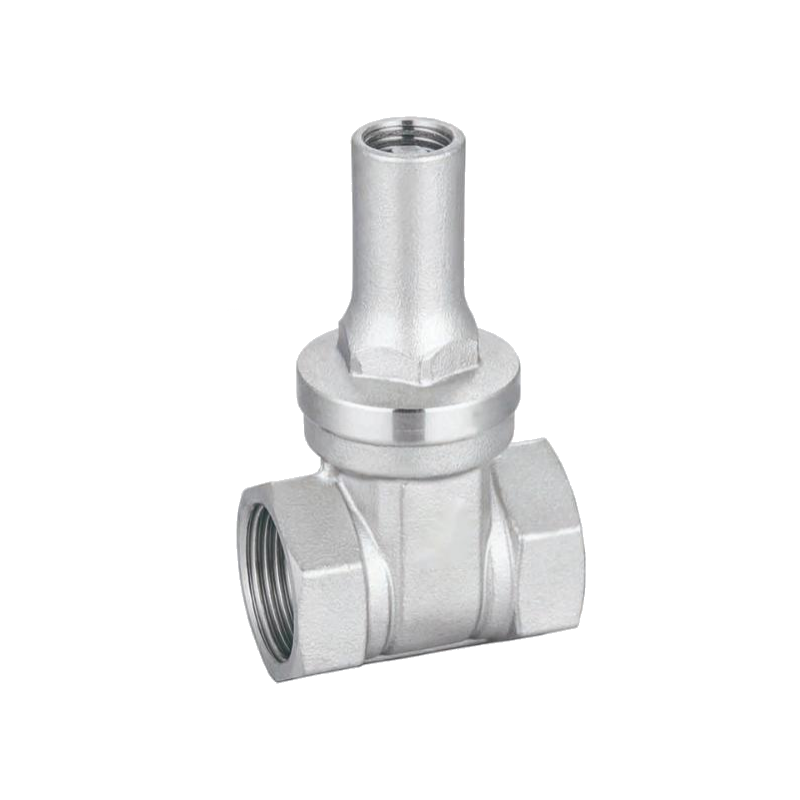

Product Features
The bottom of the valve features a flat design identical to that of the water pipe, effectively preventing debris accumulation and ensuring reliable valve sealing. High-quality rubber is applied to fully encapsulate the gate plate, ensuring a secure connection between the rubber and the ductile iron gate plate, with precise geometric dimensions.
Indeed, the gate plate exhibits excellent elasticity.
Technical parameter
Model: CZ15X
Design and manufacturing standard: GB/T 8464
Nominal pressure: 1.0/1.6 MPa
Sealing test pressure: 0.6–0.8 MPa
Shell test pressure: 1.5/2.4 MPa
Applicable media: raw water, clean water, wastewater
Media temperature: 0°C–80°C
Connection type: Threaded connection
Connection standard: GB/T 7307

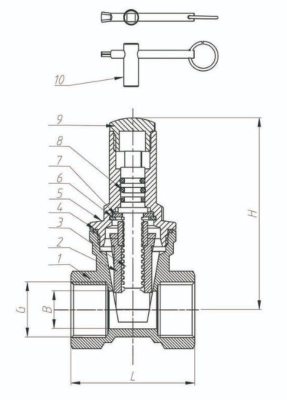

Structure size
Nominal diameter | PN | Size (mm) | |||||
Inch | mm | L | B | H | S | screw thread G | |
1/2" | 15 | 10/16 | 46 | 14 | 72 | 25.5 | 1/2" |
3/4" | 20 | 10/16 | 51 | 17 | 75 | 31.5 | 3/4" |
1" | 25 | 10/16 | 56 | 24 | 88 | 38 | 1" |
11/4" | 32 | 10/16 | 58 | 30 | 104 | 47.5 | 11/4" |
11/2" | 40 | 10/16 | 62 | 35 | 119 | 53.5 | 11/2" |
2" | 50 | 10/16 | 71 | 47 | 142 | 66 | 2" |
Material List
order number | part | standard layout |
1 | Globe valve body | S304 |
2 | Globe valve plate | S304 |
3 | Globe valve stem | S304 |
4 | gasket ring | PTFE |
5 | Globe valve cover | S304 |
6 | Neck spring clip | S304 |
7 | Hollow gasket | S304 |
8 | O molding ring | EP7118F |
9 | Dirt-proof cover | PE |
10 | key | Q235 |
