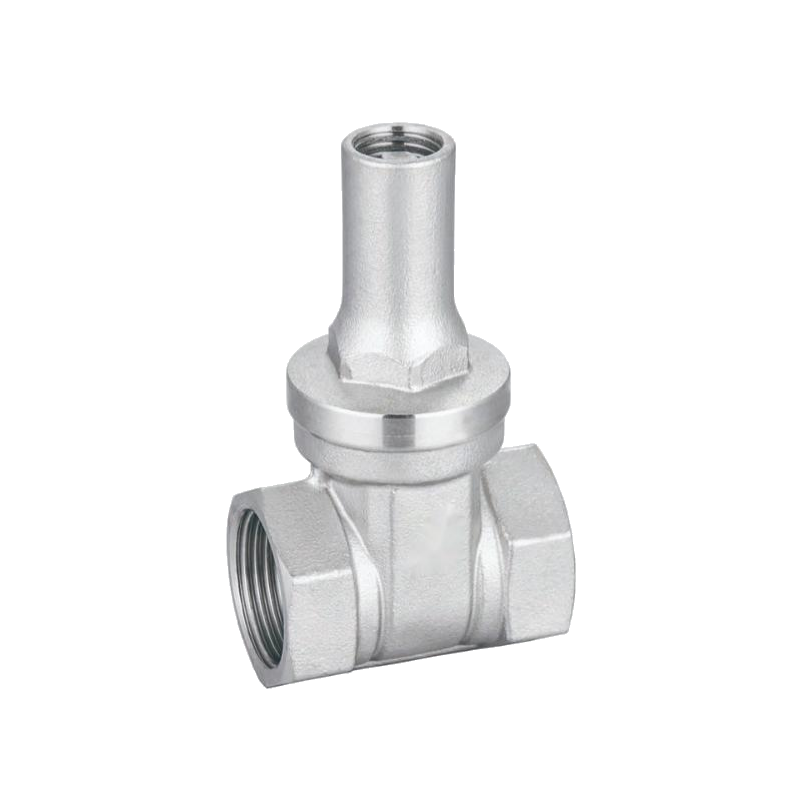

FZ15W Dark-shaft threaded hard-sealed anti-theft gate valve

Product Overview

This valve is designed, manufactured, inspected, and tested in accordance with GB/T 8464, and is suitable for use at specified temperatures.

This device is designed for use with media such as water, oils, and gases at temperatures ranging from-20°C to 120°C within pipeline systems as an opening/closing mechanism. It ensures excellent sealing performance under operating pressure but is not intended for flow rate regulation. It finds extensive application in fluid pipelines across industries including water supply, heating, gas distribution, and solar water heaters.

Technical Specifications

Model: FZ15W

Design and manufacturing standard: GB/T 8464

Nominal pressure: 1.0/1.6 MPa

Sealing test pressure: 0.6–0.8 MPa

Shell test pressure: 1.5/2.4 MPa

Applicable media: raw water, clean water, wastewater; Media temperature: 0°C to 80°C

Connection type: Threaded connection

Connection standard: GB/T 7307

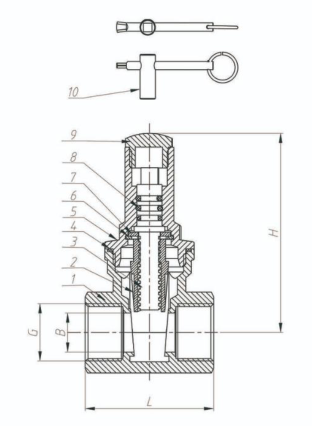

Structure Size

Material List
