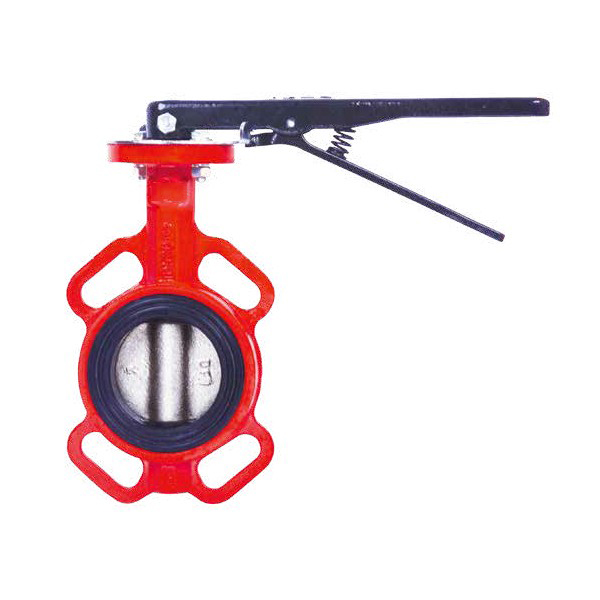

Material list
No. | Part | Standard Configuration | Optional Configuration |
|---|---|---|---|
1 | Valve Body | Ductile Iron QT450-10 | NBR/FKM + backing, EPDM/NBR vulcanized seat, EPDM/NBR soft seat |
2 | Valve Seat | DN40-DN400: EPDM + backing, DN450-DN800: EPDM vulcanized to body | Stainless Steel 304/316, Aluminum Bronze C95400 |
3 | Disc | Ductile Iron QT450-10 | Stainless Steel 304/316/416/431 |
4 | Shaft | DN40-350: Stainless Steel 420, DN400-DN800: Stainless Steel 431 | Stainless Steel 304/316/416/431 |
5 | O-Ring | NBR | EPDM |
6 | Bushing | DN40-DN350: Nylon 1010, DN400-DN800: Lubricated Bronze | PTFE |
7 | Handle | Ductile Iron QT450-10 | Aluminum Material |
8 | End Cover (DN400-DN800) | Ductile Iron QT450-10 | With position indicator / Without position indicator |
9 | Worm Gear Box | Ductile Iron QT450-10 | With position indicator / Without position indicator |
Note: For non-standard configurations, please specify in the order or contract.

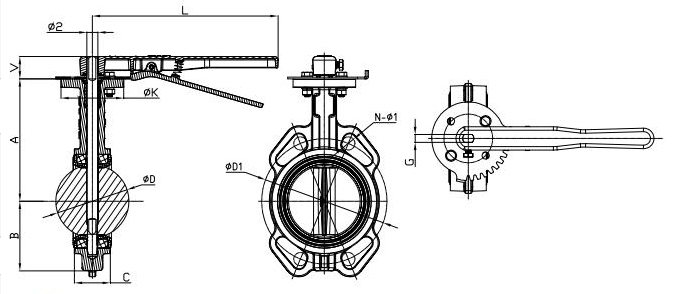

Structural dimensions
G | L | φD1 | N-1 | ISO5211 | 03 | H | H1 | H2 | P | ||||||||||
PN16 | |||||||||||||||||||
1.5" | 40 | 138 | 64.5 | 32 | 33 | 43 | 14 | 90 | 9.45 | 267 | 11 | 4-01 F07 | 150 | 206 | 158 | 52 | 43.5 | ||
2" | 50 | 140.5 | 64.5 | 32 | 43 | 53.9 | 14 | 90 | 9.53 | 267 | 125 | 4-0 F07 | 150 | 206 | 158 | 52 | 43.5 | ||
2.5" | 65 | 153 | 72 | 32 | 46 | 65.2 | 14 | 90 | 9.53 | 297 | 145 | 4-019 | F07 | 150 | 206 | 158 | 52 | 43.5 | |
3" | 80 | 157.5 | 86 | 32 | 46 | 79.7 | 14 | 90 | 9.53 | 267 | 160 | 8-019 | F07 | 150 | 206 | 158 | 52 | 43.5 | |
4" | 100 | 176 | 100 | 32 | 52 | 105 | 16 | 90 | 11.14 | 267 | 180 | 8-019 | F07 | 150 | 206 | 158 | 52 | 43.5 | |
5" | 125 | 191 | 112 | 32 | 56 | 130 | 16 | 90 | 11.14 | 267 | 210 | 8019 | F07 | 150 | 206 | 158 | 52 | 43.5 | |
6" | 150 | 202.5 | 128 | 32 | 56 | 156 | 20 | 90 | 12.7 | 267 | 240 | 8-023 | F07 | 150 | 206 | 158 | 52 | 43.5 | |
8" | 200 | 243.5 | 162 | 45 | 60 | 206.7 | 26 | 125 | 20.6 | 356 | 295 | 120 F10 | 300 | 310 | 239 | 69 | 62.5 | ||
10" | 250 | 273 | 194 | 45 | 68 | 253.3 | 26 | 125 | 20.6 | 490 | 355 | 12-028 | F10 | 300 | 310 | 239 | 69 | 62.5 | |
12" | 300 | 311 | 223 | 45 | 78 | 301.9 | 28 | 125 | 22.1 | 490 | 410 | 12-028 | F10 | 300 | 307 | 229 | 73 | 77.5 | |
14" | 350 | 340 | 267 | 48 | 76.5 | 333.9 | 31.6 | 150 | 22.1 | 1 | 470 | 16-0 F12 | 300 | 307 | 229 | 73 | 77.5 | ||
16" | 400 | 400 | 319.5 | 48 | 102 | 389.6 | 33.2 | 175 | 27 | 1 | 525 | 16-031 | F14 | 380 | 418 | 288 | 110 | 120 | |
18" | 450 | 422 | 345.4 | 48 | 114 | 441 | 38.1 | 175 | 27 | 1 | 585 | 20-031 | F14 | 380 | 418 | 288 | 110 | 120 | |
20" | 500 | 480 | 380 | 70.2 | 127 | 492.4 | 41.2 | 210 | - | 1 | 650 | 20-034 | F16 | 380 | 465 | 325 | 123 | 185 | |
24" | 600 | 562 | 441 | 70.2 | 154 | 592.8 | 50.6 | 210 | 1 | 1 | 770 | 20-037 | F16 | 380 | 500 | 340 | 129 | 185 | |
Inch | mm | A | B | V | C | OD | 02 | ØK | G | L | φD1 | N-Φ1 | ISO5211 | 03 | H | H1 | H2 | P | |
PN16 | |||||||||||||||||||
28" | 700 | 575 | 505 | 70.2 | 165 | 695 | 63.4 | 300 | 1 | 1 | 840 | F25 | 380 | 543 | 373 | 132 | 218 | ||
30" | 750 | 660 | 550 | 70.2 | 165 | 744 | 63.4 | 300 | 1 | 1 | 900 | 24-034 | F25 | 380 | 543 | 373 | 132 | 218 | |
32" | 800 | 667 | 577 | 70.2 | 190 | 795.7 | 63.4 | 300 | 1 | 1 | 950 | 24-034 | F2 | 380 | 543 | 373 | 132 | 218 | |
With signaler/Without signaler
Note: If you need to select a non-standard configuration, specify it in the order or contract.
