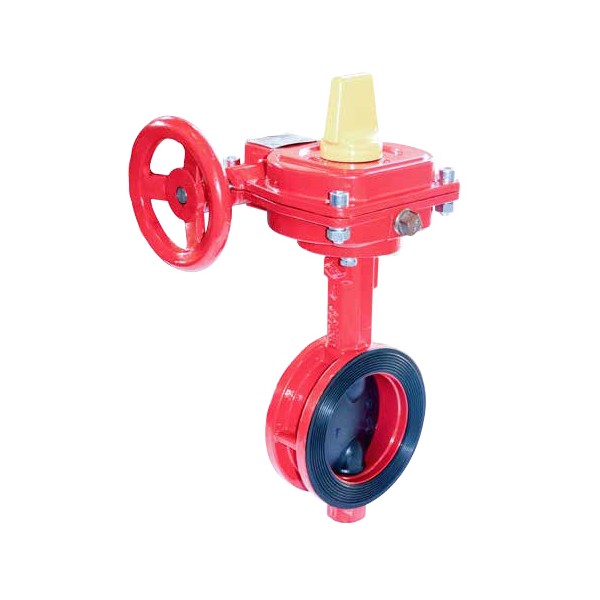

Parameter/Standard
●Design standard: GB/T 12238-2008/GB5135.6, BS EN593
●Working pressure: PN10/16/25
● Operating temperature: 0°C to 80°C
● Connection standards: BS EN1092-2, GB/T 17241.6
● Surface treatment: Epoxy resin powder spraying, compliant with ANSI/AWWA C550 standard
Material list
order number | part | standard layout | Optional configuration |
1 | valve body | Ductile cast iron QT450-10 | |
2 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
3 | Downshaft shaft | Stainless steel 431 | |
4 | Butterfly blade | Ductile iron QT450-10 + EPDM rubber | Ductile iron QT450-10 + Nitrile rubber |
5 | Six-sided bolt | carbon steel | Stainless steel 304/316 |
6 | worm-gear case | Ductile cast iron QT450-10 | With signaler/Without signaler |
7 | Upward shaft | Stainless steel 431 | |
8 | O molding ring | acrylonitrile-butadiene rubber | EPDM |
9 | End face sealing gasket | EPDM | acrylonitrile-butadiene rubber |
Note: If you need to select a non-standard configuration, specify it in the order or contract.

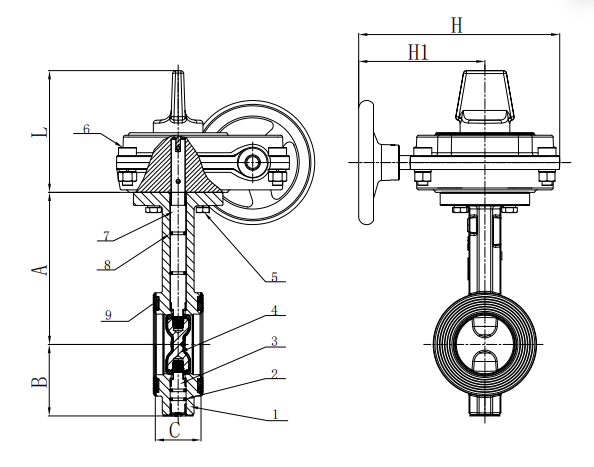

Structure size
Nominal diameter DN | size （mm） | ||||||
Inch | mm | A | B | C | L | H1 | H |
2” | 50 | 140.5 | 65 | 43 | 120.5 | 127 | 202.25 |
2.5” | 65 | 153 | 71 | 46 | 120.5 | 127 | 202.25 |
3” | 80 | 157.5 | 81 | 46 | 120.5 | 127 | 202.25 |
4” | 100 | 176 | 95 | 52 | 120.5 | 127 | 202.25 |
5” | 125 | 191 | 111 | 56 | 120.5 | 127 | 202.25 |
6” | 150 | 202.5 | 133 | 56 | 120.5 | 139.5 | 214.75 |
8” | 200 | 243.5 | 164 | 60 | 120.5 | 198.5 | 273.75 |
10” | 250 | 273 | 196 | 68 | 120.5 | 198.5 | 273.75 |
12” | 300 | 311 | 226 | 78 | 129.5 | 198.5 | 293.5 |
