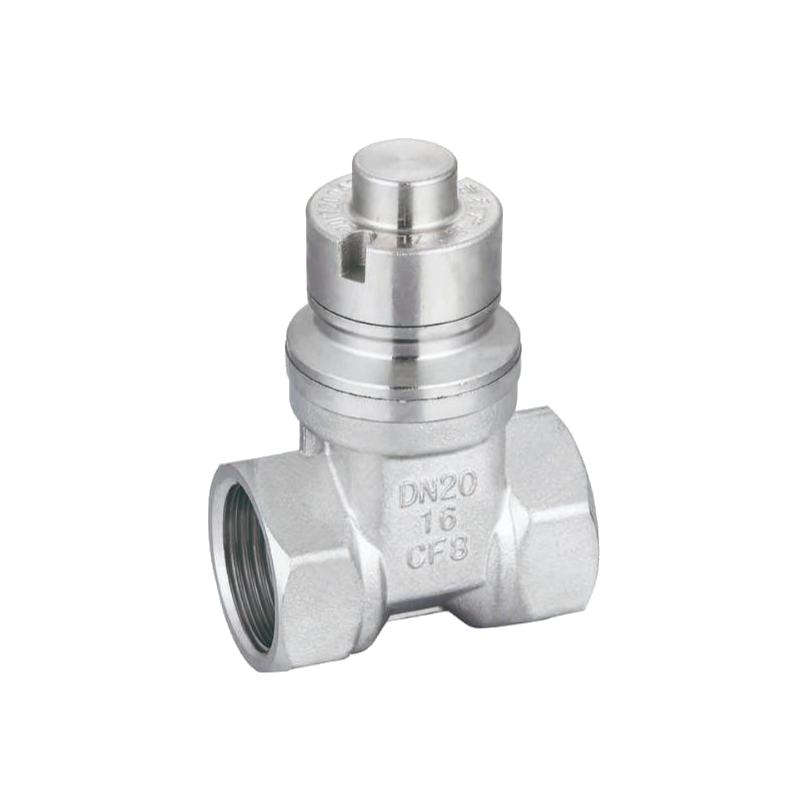

Product Overview
The bottom of the valve features a flat-bottom design identical to that of the water pipe, minimizing the risk of debris accumulation.The valve features reliable sealing performance; high-quality rubber is applied to fully encapsulate the gate plate, ensuring a secure connection between the rubber and the ductile iron gate plate, with precise geometric dimensions.Indeed, the gate plate exhibits excellent elasticity.
Technical Parameter
Model: CZ15X
Design and manufacturing standard: GB/T 8464
Sealing test pressure: 0.6–0.8 MPa
Applicable media: raw water, clean water, wastewater
Connection type: Threaded connection
Nominal pressure: 1.0/1.6 MPa
Shell test pressure: 1.5/2.4 MPa
Media temperature: 0°C to 80°C
Connection Standard: GB/T 7307
Product Overview

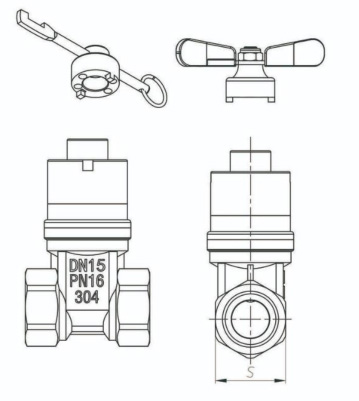

Nominal diameter | PN | size （mm） | |||||
Inch | mm | L | B | H | S | screw thread G | |
1/2” | 15 | 10/16 | 46 | 14 | 63 | 26 | 1/2” |
3/4” | 20 | 10/16 | 51 | 17 | 66 | 32 | 3/4” |
1” | 25 | 10/16 | 56 | 24 | 77 | 38 | 1" |
11/4” | 32 | 10/16 | 58 | 30 | 92 | 47 | 11/4” |
11/2” | 40 | 10/16 | 62 | 35 | 100 | 53 | 11/2” |
2” | 50 | 10/16 | 71 | 47 | 122 | 65 | 2" |
Material List

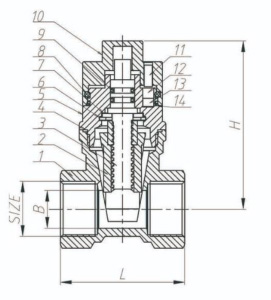

order number | part | standard layout | order number | part | standard layout |
1 | Globe valve body | S304 | 8 | Open-ring clasp | S304 |
2 | Globe valve plate | NBR | 9 | O molding ring | EP7118F |
3 | Globe valve stem | S304 | 10 | Lock the cap | S304 |
4 | gasket ring | NBR | 11 | magnet | magnet |
5 | Globe valve cap | S304 | 12 | rubber | NBR |
6 | Neck spring clip | S304 | 13 | magnet | magnet |
7 | Hollow gasket | S304 | 14 | O molding ring | NBR |
