Product Overview
This product is an opening/closing device designed, manufactured, inspected, and tested according to national standards. It is suitable for water, oil, gas, and other media at temperatures ranging from -20°C to 120°C. Under the working pressure of the pipeline system, it provides good sealing performance and is NOT intended for flow regulation. It can be widely used in fluid pipelines of water supply, heating, gas, solar water heaters, and other industries.
Technical Parameters
Parameter | Value / Specification |
|---|---|
Model | CZ15W |
Design & Manufacturing Standard | GB/T8464 |
Nominal Pressure | 1.0 / 1.6 MPa |
Seal Test Pressure | 0.6 – 0.8 MPa |
Shell Test Pressure | 1.5 / 2.4 MPa |
Applicable Media | Raw water, clean water, sewage |
Medium Temperature | 0°C – 80°C |
Connection Type | Threaded |
Connection Standard | GB/T7307 |

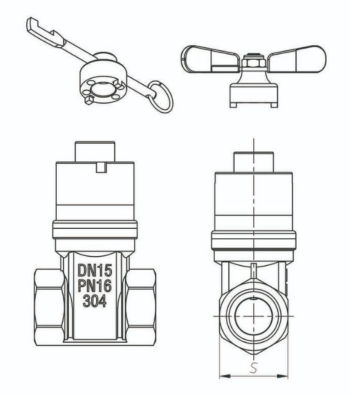

Structural Dimensions
Nominal Bore | PN | Dimensions (mm) | Thread G | ||||
|---|---|---|---|---|---|---|---|
DN | Inch | mm | L | B | H | S | |
DN15 | 1/2" | 15 | 46 | 14 | 63 | 25.5 | 1/2" |
- | 3/4" | 20 | 51 | 18.5 | 66 | 31.5 | 3/4" |
- | 1" | 25 | 57 | 24 | 76 | 38 | 1" |
- | 1-1/4" | 32 | 57 | 30 | 87 | 47.5 | 1-1/4" |
- | 1-1/2" | 40 | 61 | 36 | 95 | 53.5 | 1-1/2" |
- | 2" | 50 | 71 | 47 | 117 | 66 | 2" |
Material List
No. | Part Name | Standard Configuration | No. | Part Name | Standard Configuration |
|---|---|---|---|---|---|
1 | Gate Valve Body | S304 | 8 | Split Collar | S304 |
2 | Gate Valve Disc | S304 | 9 | O-Ring | EP7118F |
3 | Gate Valve Stem | S304 | 10 | Lock Cap | S304 |
4 | O-Ring | NBR | 11 | Magnet | Magnet |
5 | Magnetic Cap | S304 | 12 | Rubber | NBR |
6 | Internal Circlip | S304 | 13 | Magnet | Magnet |
7 | Hollow Washer | S304 | 14 | O-Ring | NBR |
