Product Overview

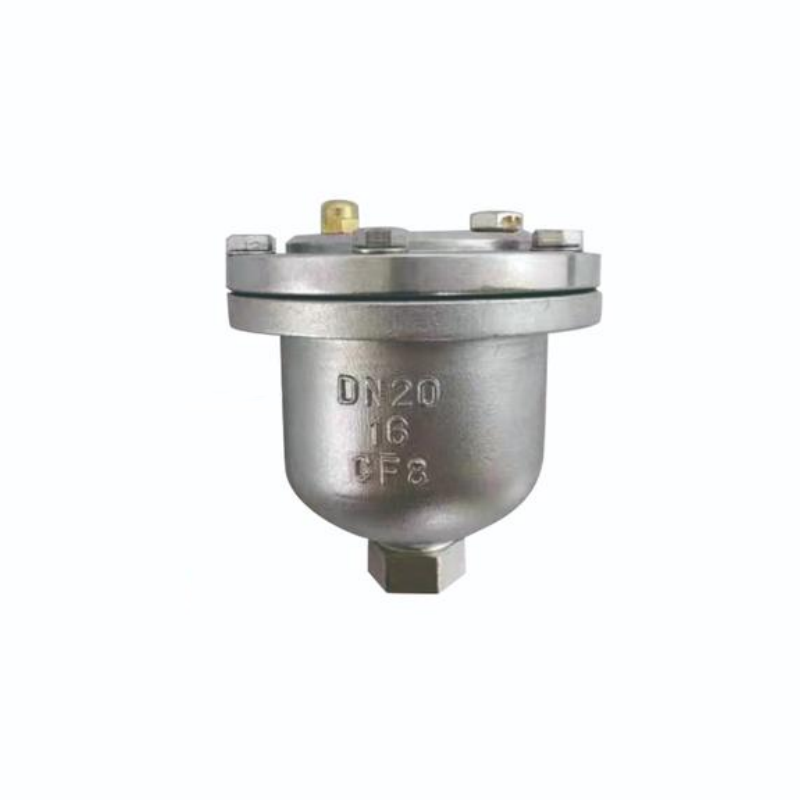

The micro air vent valve is installed at high points of pipelines in high-rise buildings, in-plant piping systems, and small pumping stations. It is used to remove dissolved air, thereby protecting or improving the water delivery efficiency of the system and saving energy. It features an elliptical valve body, with internal components including a float ball, lever, lever frame, and valve seat.
Product Features
Quick exhaust; exhausts air without draining water.
Reliable performance, durable for long-term use.
Simple structure, easy maintenance.
Technical Parameters
Item
Specification
Model
ARVX
Test Standard
GB/T 13927
Nominal Pressure
1.6 MPa
Nominal Diameter
15–50 mm
Medium Temperature
0–80 °C
Connection Type
Threaded Connection
Applicable Medium
Water

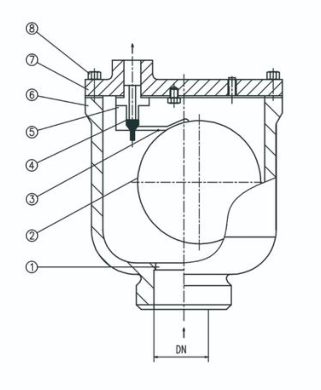

Structural Dimensions
DN (mm) | PN (bar) | Thread Size G |
|---|---|---|
25 | 16 | 1" |
40 | 16 | 1.5" |
50 | 16 | 2" |
Material List
No. | Part Name | Standard Configuration |
|---|---|---|
1 | Valve Seat | Stainless Steel 304 |
2 | Float Ball | Stainless Steel 304 |
3 | Lever | Stainless Steel 304 |
4 | Plug | Nitrile Rubber |
5 | Lever Frame | Stainless Steel 304 |
6 | Valve Body | Stainless Steel 304 |
7 | Valve Cover | Stainless Steel 304 |
8 | Bolt | Stainless Steel |
