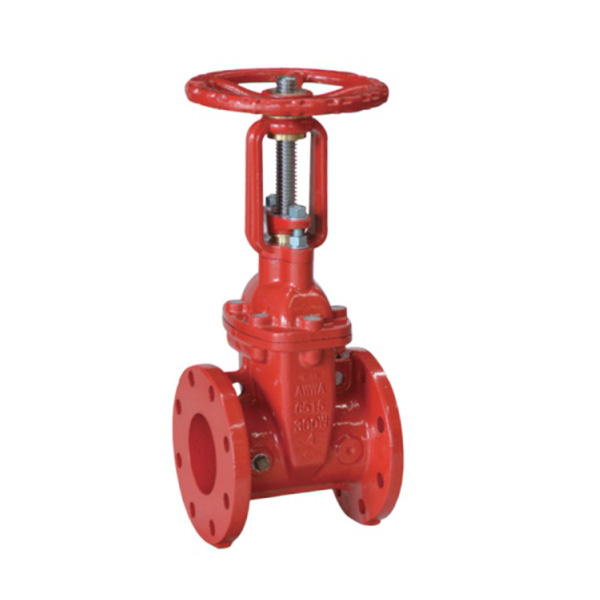

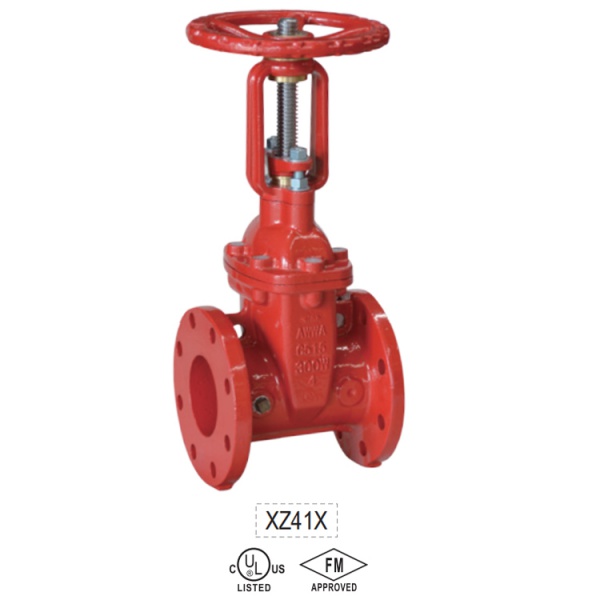

● Connection Ends: Flange to ASME B16.1 CL 125
● Working Pressure: 363PSI
● Temperature Range:0C-80℃
● Ccating: Fusion Bonded Epaxy Caating Complies with ANSV AWWAC550
Description:
Connection Ends: Flange to ASME B16.1 CL 125
Working Pressure: 363PSI
Temperature Range: 0℃ - 80℃
Coating: Fusion Bonded Epoxy Coating Complies with
ANSI/ AWWA C550
MATERIAL SPECIFICATION
Part No. | Part | Standard Specification | Options |
|---|
1 | Valve Body | ASTM A536, 65-45-12 | |
2 | Resilient Wedge Disc | ASTM A536, 65-45-12+EPDM | |
3 | Stem | AISI 420 | AISI 316 |
4 | Bonnet Gasket | EPDM | |
5 | Bonnet | ASTM A536, 65-45-12 | |
6 | Stem Packing | EPDM | |
7 | Yoke | ASTM A536, 65-45-12 | |
8 | Stem Bushing | Brass HPb59-1 | C44300 |
9 | Gland | ASTM A536, 65-45-12 | |
10 | Stem Nut | Brass HPb59-1 | C44300 |
11 | Handwheel | ASTM A536, 65-45-12 | |
12 | Washer | CW617N | C44300 |
13 | Gland Nut | Carbon Steel Zinc Plated | AISI 316 |
14 | Stud | Carbon Steel Zinc Plated | AISI 316 |
15 | Flat Washer | Carbon Steel Zinc Plated | AISI 316 |
16 | Bolt | Carbon Steel Zinc Plated | AISI 316 |
17 | O-Ring | NBR | |
18 | Plug | ASTM B584-06a C89333 | C44300 |
Note: For special material request other than standard specification, please indicate clearly on the inquiry or order list.
Size 2"~5" with 1pc of 1/2" bronze NPT tapping plug, size 6"~12 with 1pc of 3/4" bronze NPT tapping plug.
| | | | | | | DN | Dimensions(mm) |
|---|
Inch | mm | L | H1(Close) | H2(Open) | D | D1 | C | n-ΦL |
2" | 50 | 178 | 348 | 400 | 152 | 120.7 | 16 | 4-Φ19.1 |
2.5" | 65 | 190 | 373 | 440 | 178 | 139.7 | 17.5 | 4-Φ19.1 |
3" | 80 | 203 | 408 | 490 | 191 | 152.4 | 19.1 | 4-Φ19.1 |
4" | 100 | 229 | 471 | 573 | 229 | 190.5 | 19.1 | 8-Φ19.1 |
5" | 125 | 254 | 541 | 665 | 254 | 215.9 | 19.1 | 8-Φ22.2 |
6" | 150 | 267 | 601 | 755 | 279 | 241.3 | 19.1 | 8-Φ22.2 |
8" | 200 | 292 | 774 | 975 | 343 | 298.5 | 22.2 | 8-Φ22.2 |
10" | 250 | 330 | 939 | 1193 | 406 | 362 | 23.8 | 12-Φ25.4 |
12" | 300 | 356 | 1065 | 1370 | 483 | 431.8 | 25.4 | 12-Φ25.4 |
