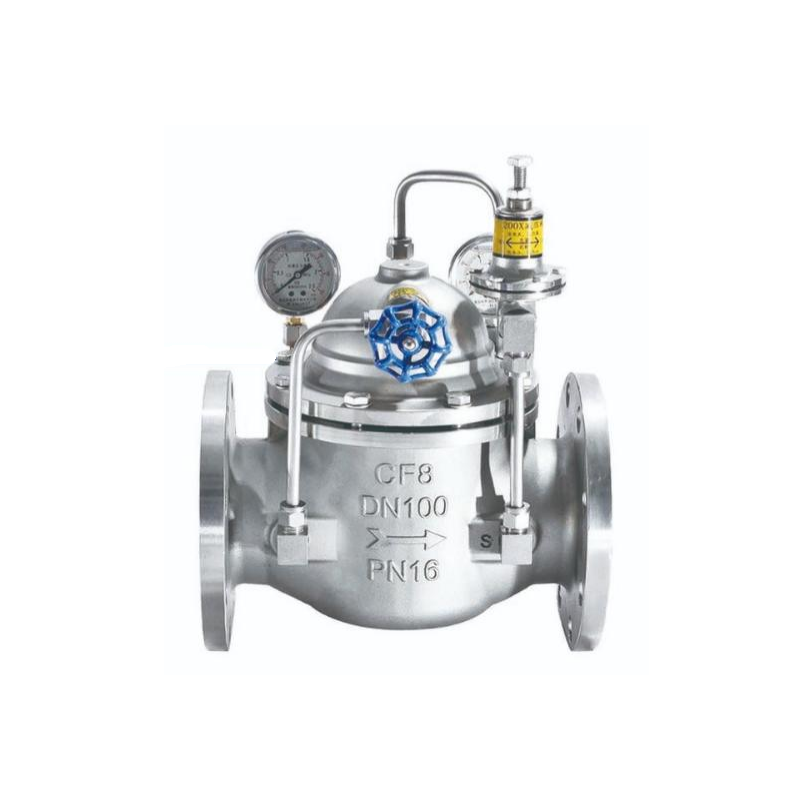

200X Adjustable pressure reducing valve

Product Overview

The 200 X adjustable pressure reducing valve is a functional valve that utilizes the medium's own energy to regulate and control pipeline pressure. It is used in domestic water supply, fire protection water supply, and other industrial water supply systems. By adjusting the pressure-reducing pilot valve, the outlet pressure of the main valve is regulated. The outlet pressure remains constant regardless of changes in inlet pressure or flow rate, maintaining it at the set value, which can be adjusted as needed to achieve the desired pressure reduction. This valve is widely employed in water supply network systems for high-rise buildings, residential areas, and urban water supply projects.

Product Features

Stable performance, safe and reliable operation, easy installation, and long service life

Utilizes self-acting control via the directional valve, requiring no additional devices or energy sources, with simple maintenance.

The pressure control exhibits high accuracy, with minimal sensitivity to inlet pressure and flow rate, ensuring reliable pressure reduction and stabilization.

technical parameter

Model: 200 X

Design and manufacturing standard: JB10674-2006   Nominal pressure: 1.6 MPa

Design and manufacturing standard: JB10674-2006   Nominal pressure: 1.6 MPa

Sealing test pressure: 1.76 MPa   Shell test pressure: 2.4 MPa

Sealing test pressure: 1.76 MPa   Shell test pressure: 2.4 MPa

Applicable medium: Water | Medium temperature: 0–80°C

Applicable medium: Water | Medium temperature: 0–80°C

Connection type: Flange connection   Connection standard: JB/T79

 Connection type: Flange connection   Connection standard: JB/T79

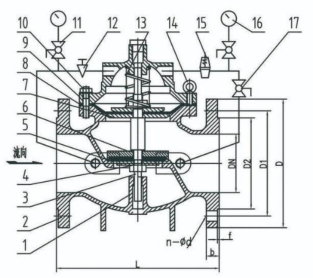

 Structure size

Material list
