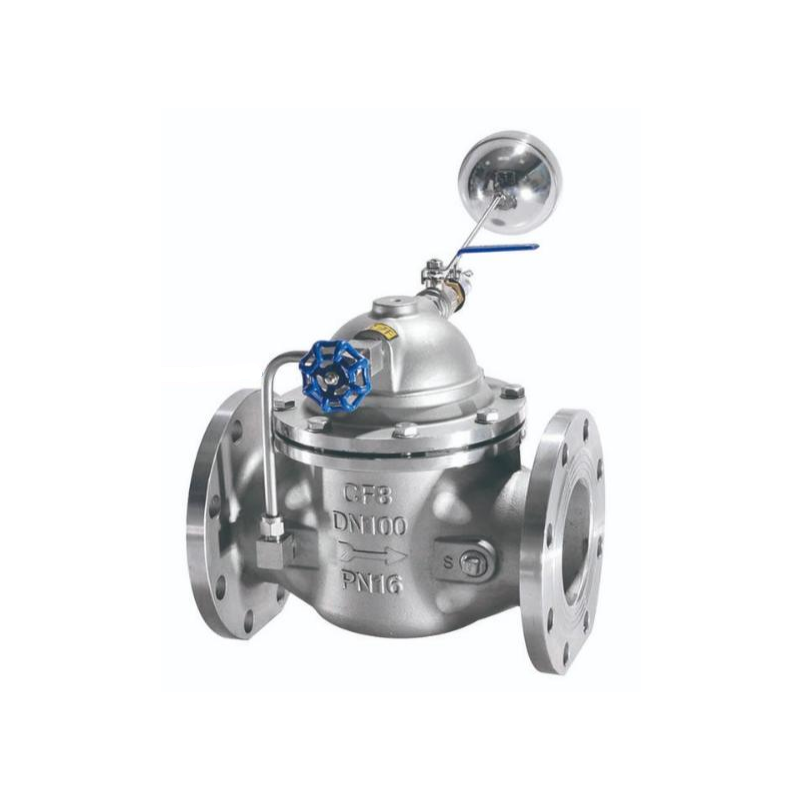

100X Diaphragm-type remote-controlled float valve

Product Overview

The 100X Diaphragm Remote-controlled Float Valve is a hydraulically operated valve with multiple functions. Installed at the inlet of a pool or elevated water tower, it closes the inlet to stop water supply when the water level reaches the preset height, controlled by the float-guided valve; when the water level drops, the main valve opens the inlet to replenish the pool automatically via the float switch. Our diaphragm remote-controlled float valve offers precise level control unaffected by water pressure and can be positioned arbitrarily according to the pool height and available space.

Product Features

System pressure-driven—valves operate independently, utilizing pipeline energy for energy efficiency and environmental protection;

Angulated valve with float control—characterized by low energy consumption, precise level regulation, and slow closure capability that prevents water hammer effects during valve closure.

The independent angle valve control mechanism consists of a separate angle valve, float rod, and float assembly, which can be installed separately from the main valve. This design is ideal for confined installation and maintenance spaces, while preventing water spray at the inlet from compromising liquid level control accuracy.

Single-chamber design—ensures smooth valve operation without pressure fluctuations, providing excellent protection for the diaphragm;

The direct-flow channel offers high flow capacity and minimal water loss, reducing cavitation risks caused by unfavorable flow patterns.

Technical Specifications

Model: 100 X

Design and manufacturing standard: JB10674-2006

Sealing test pressure: 1.1/1.76 MPa

Shell test pressure: 1.5–2.4 MPa

Connection type: Flange connection

Nominal pressure: 1.0/1.6 MPa

Applicable medium: water

Media temperature: 0–80°C

Connection Standard: JB/T79

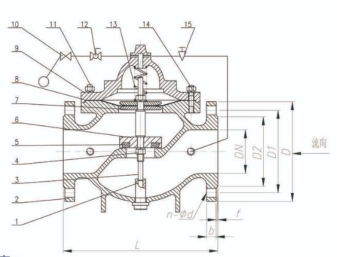

structure size

Material List
